Gemini Marine Swift Water Rescue
Gemini Marine SWR16
Swift Water Rescue boat with an aluminium hull, durable Hypalon tubes and capacity for eight people. Designed for rescue operations on flowing water and in flooded areas.
4.70 m length
Max. 8 persons
Max. 60 hp
Overview
About the Gemini SWR16
The Gemini Marine SWR16 is a 4.70-metre rescue boat from the Swift Water Rescue range. Its 5 mm aluminium hull and Hypalon tubes form a robust platform for rescue teams working on flowing water and in flooded areas.
With a beam of 2.20 metres, five separate tube compartments and a maximum payload of 800 kg, the SWR16 accommodates eight people. Carry handles, righting lines and high-flow scuppers support rescue operations. As an official Gemini Marine dealer, Novi Marine helps you select propulsion and equipment for your organisation.
Key features
✓
Aluminium hull and Hypalon tubes
5 mm 6061 aluminium and 1670 Dtex Hypalon for a robust construction.
✓
Capacity for eight people
ISO passenger capacity of eight and a maximum payload of 800 kg.
✓
Equipped for rescue teams
Eleven carry handles, two integrated righting lines and two paddles.
✓
High-flow drainage
150 mm scuppers and pressure release valves are standard features.
Technical data
Specifications
Dimensions
Length
4.70 m
Internal length
3.30 m
Beam
2.20 m
Internal beam
1.05 m
Tube diameter
550 mm
Hull deadrise
13 °
Weight & capacity
Max. persons · ISO
8 persons
Max. payload
800 kg
Unladen weight
136 kg
Tube compartments
5
Fuel capacity
2 × 25 L
Propulsion
Recommended power
50 hp
Max. power
60 hp
Shaft length
571.5 mm
Construction
Hull
6061 aluminium
Hull thickness
5 mm
Tube material
Hypalon
Tube fabric
1670 Dtex
Standard equipment
Hull & tubes
- 5 mm 6061 aluminium hull
- 1670 Dtex Hypalon tubes
- Five separate tube compartments
- Pressure release valves
Rescue equipment
- Two integrated righting lines
- Eleven carry handles
- Two 1.30-metre paddles
- 150 mm high-flow scuppers
Options & configuration
Propulsion & transport
- 50 hp outboard engine
- Trailer
Fuel
- Two flexible 25-litre fuel tanks
- Fuel line with a dripless quick connector
In pictures

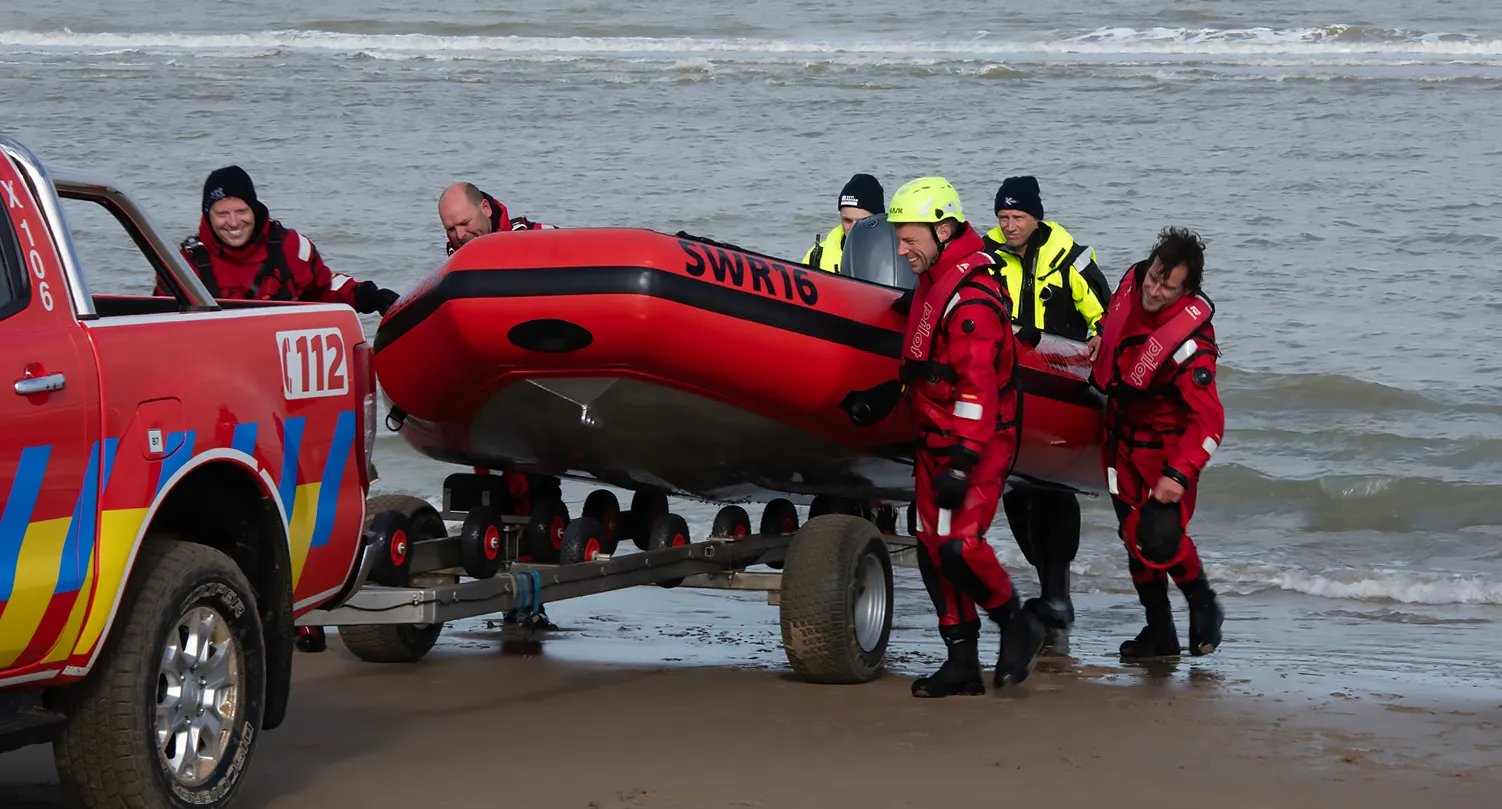

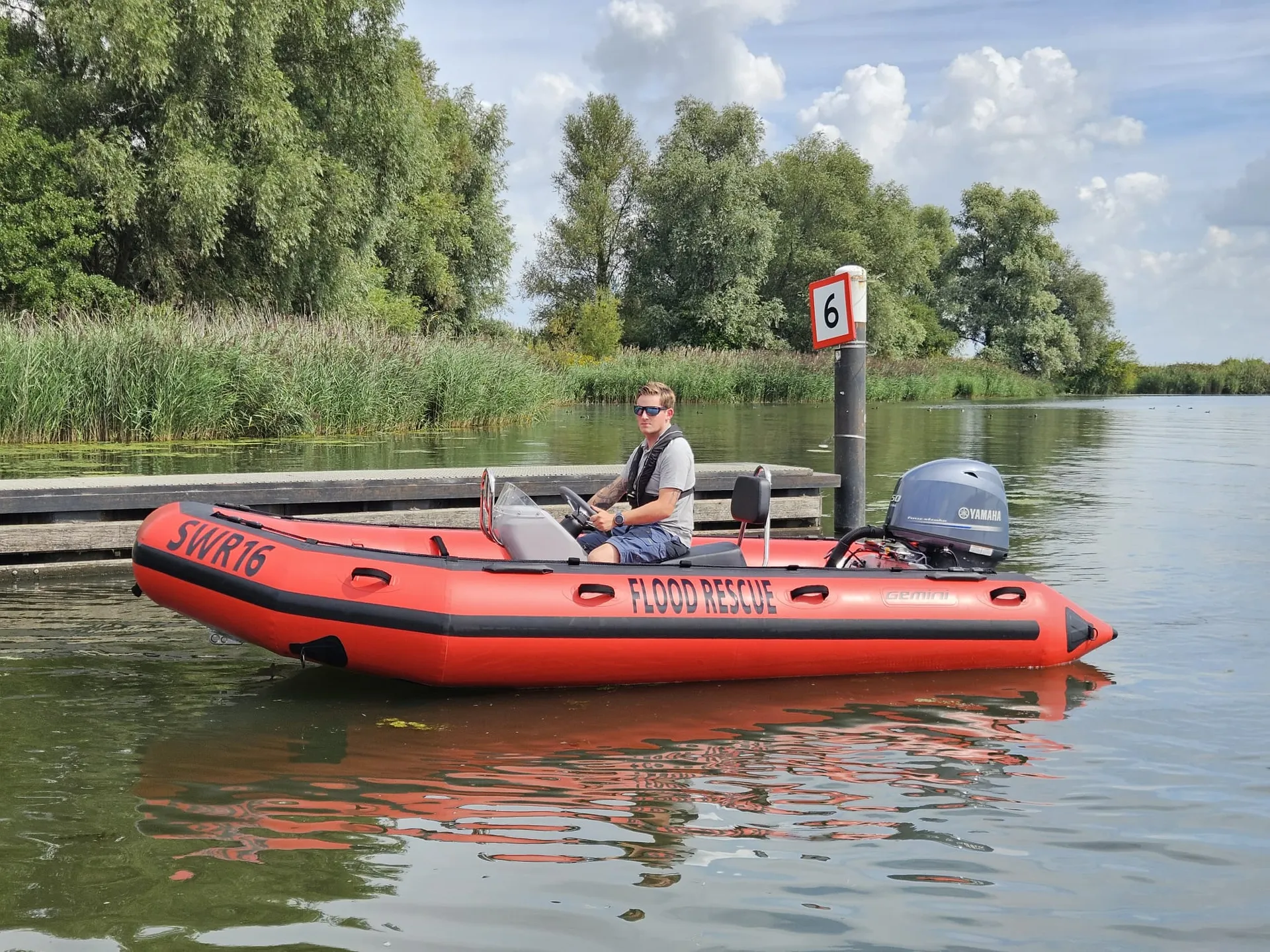

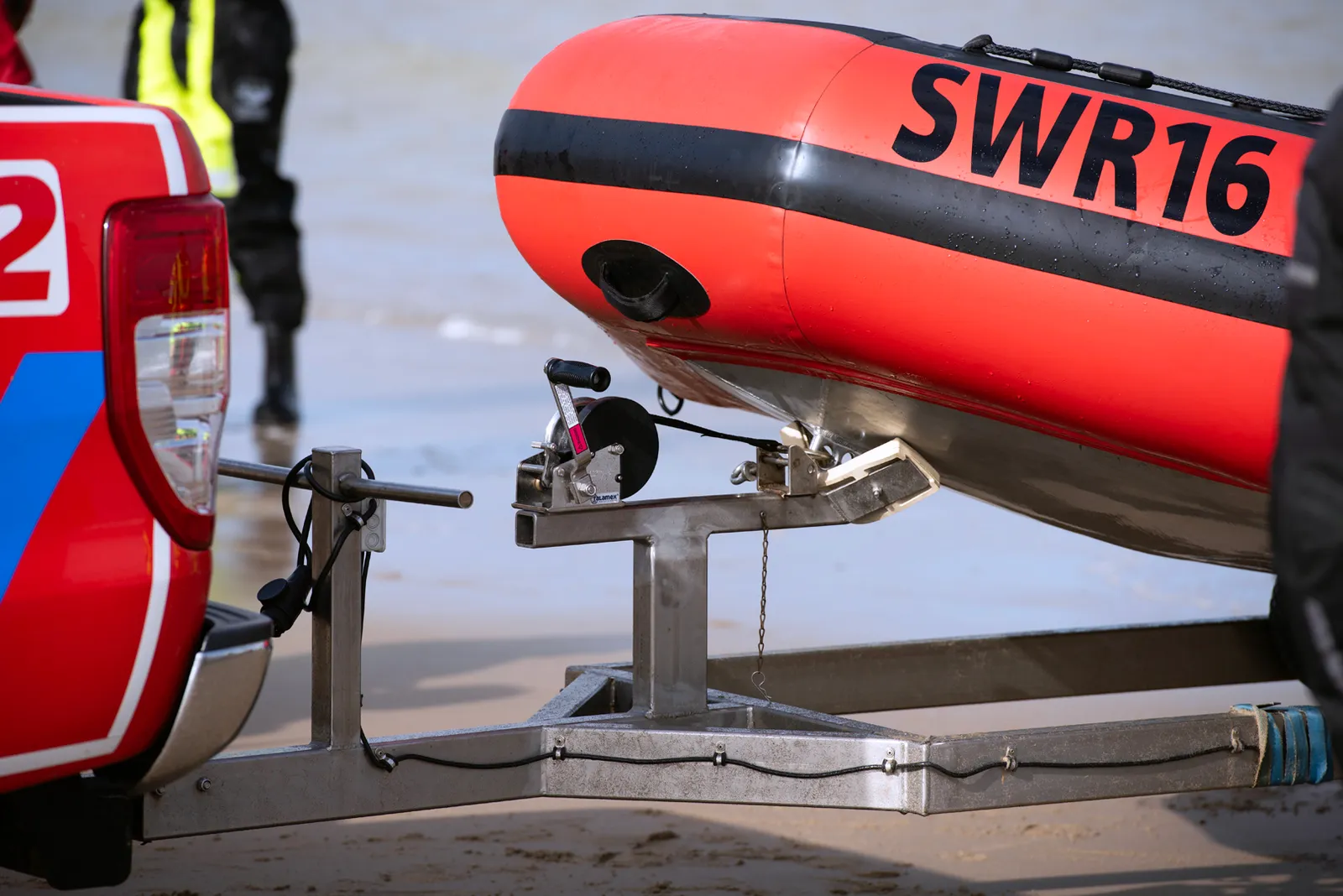

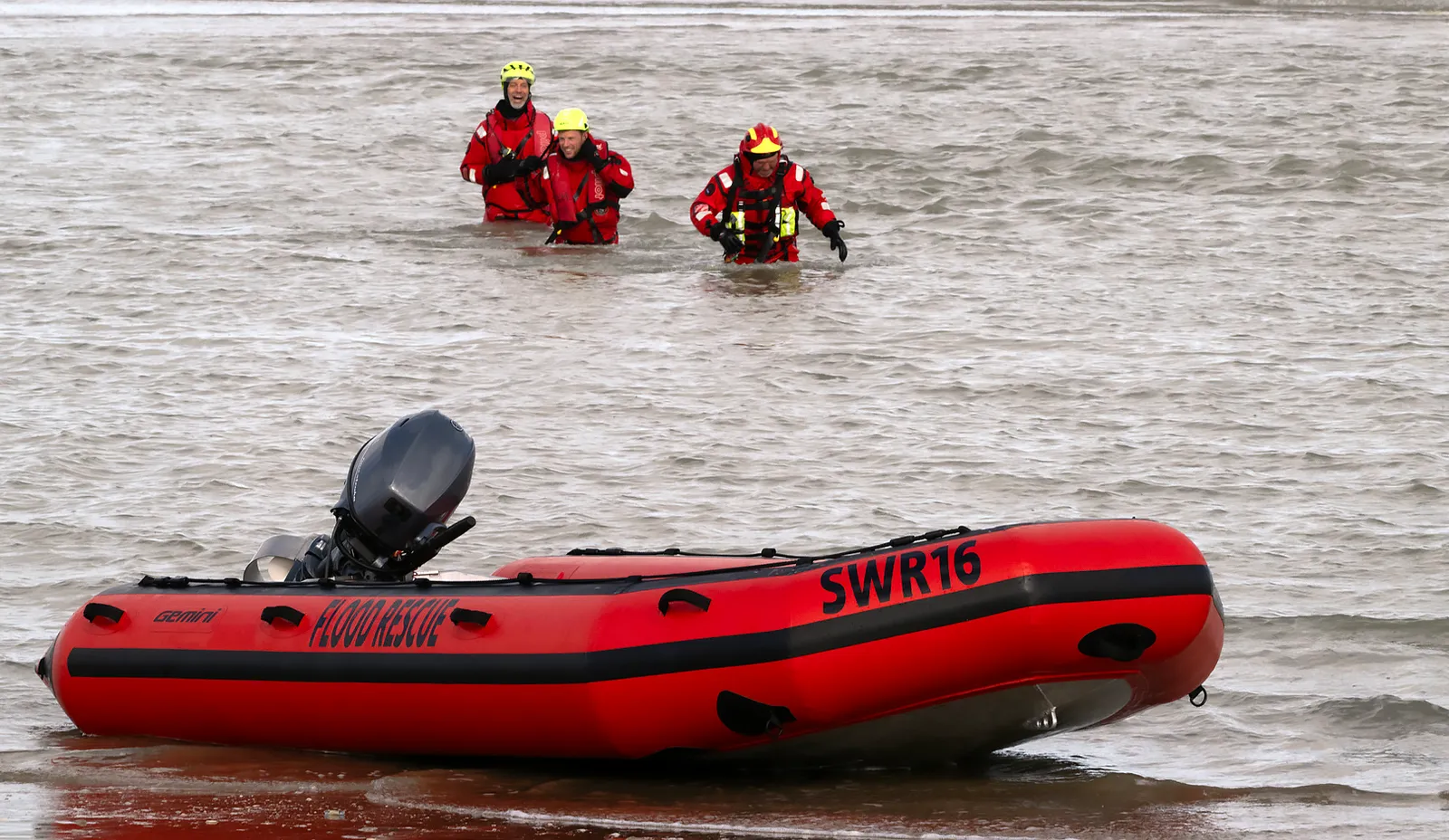

Gemini Marine SWR16 Gallery
Interested in the Gemini SWR16?
Tell us how you plan to use the SWR16. We will advise on engines, deck layout and equipment and propose a configuration that fits your operation.
