Gemini Marine WR1060
The largest Waverider platform, built for high speed, rough seas and extended professional missions on open water.
10.60 m length
Max. 18 persons
Max. 700 hp
Overview
About the Gemini WR1060

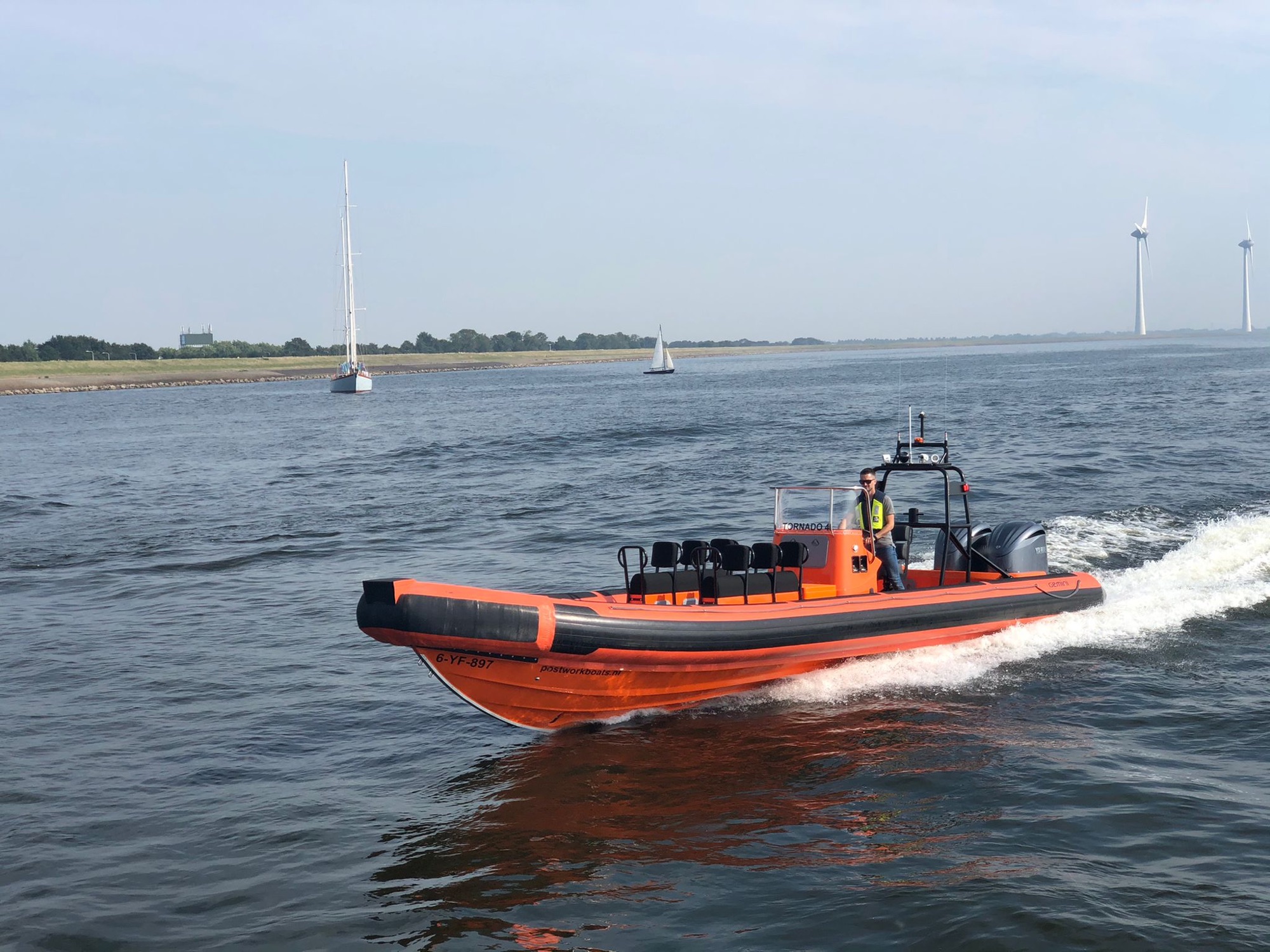

The Gemini Marine WR1060 is the largest model in the Waverider series, developed to perform in the toughest marine conditions. Its proven deep-V hull delivers stability, speed and dependable seakeeping for professional use. The WR1060 is available as both an open RIB and a Cabin RIB.
The generous deck gives you full flexibility for mission-specific layouts. With its high load capacity, large fuel capacity and powerful engine options, Novi Marine configures the WR1060 for offshore rescue, patrol, enforcement and commercial support.
Key features
✓
Built for rough seas
The deep-V hull delivers speed, control and stability in demanding offshore conditions.
✓
Maximum configuration space
The large deck accommodates larger crews, equipment, storage and mission-specific working areas.
✓

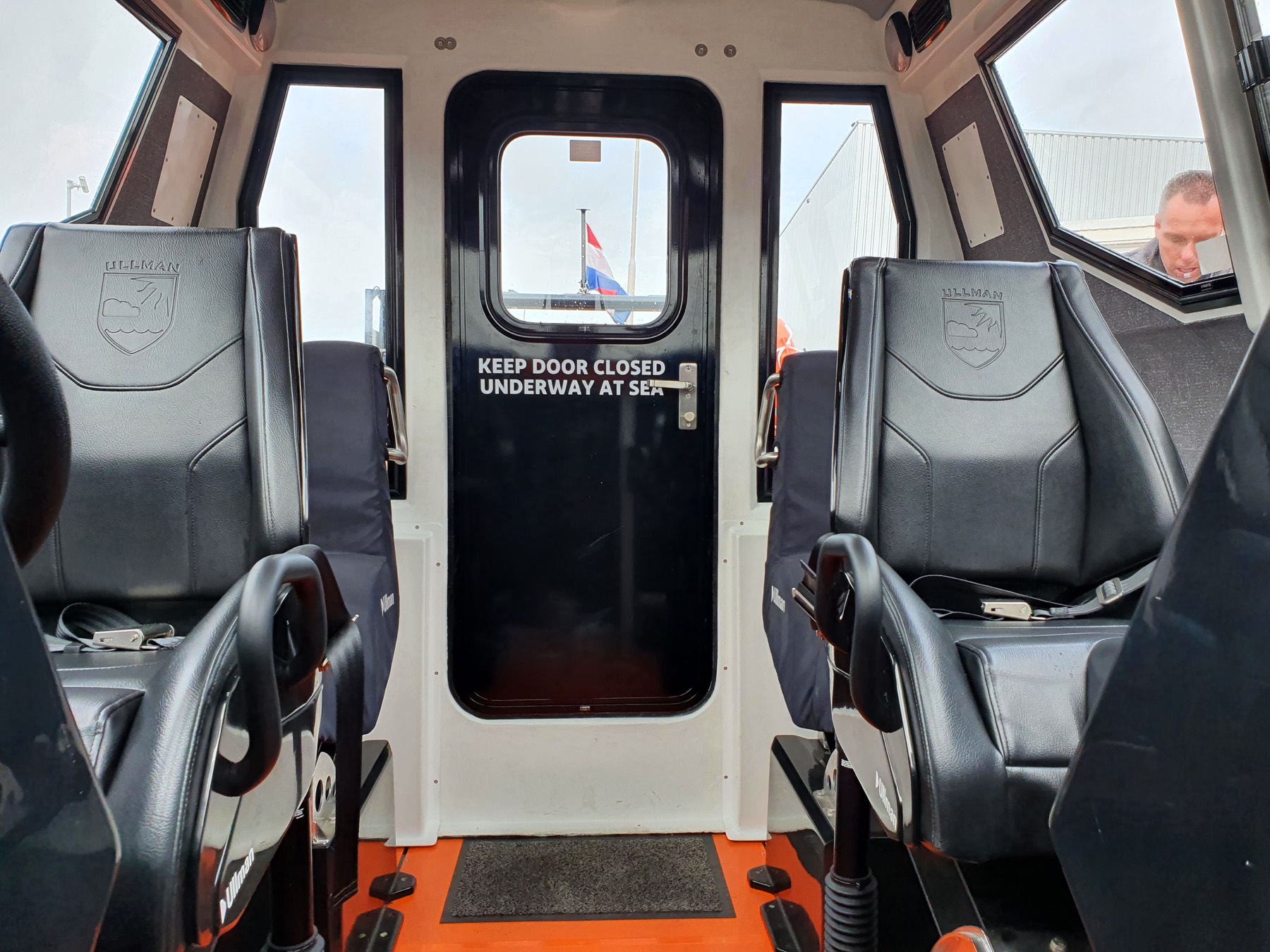

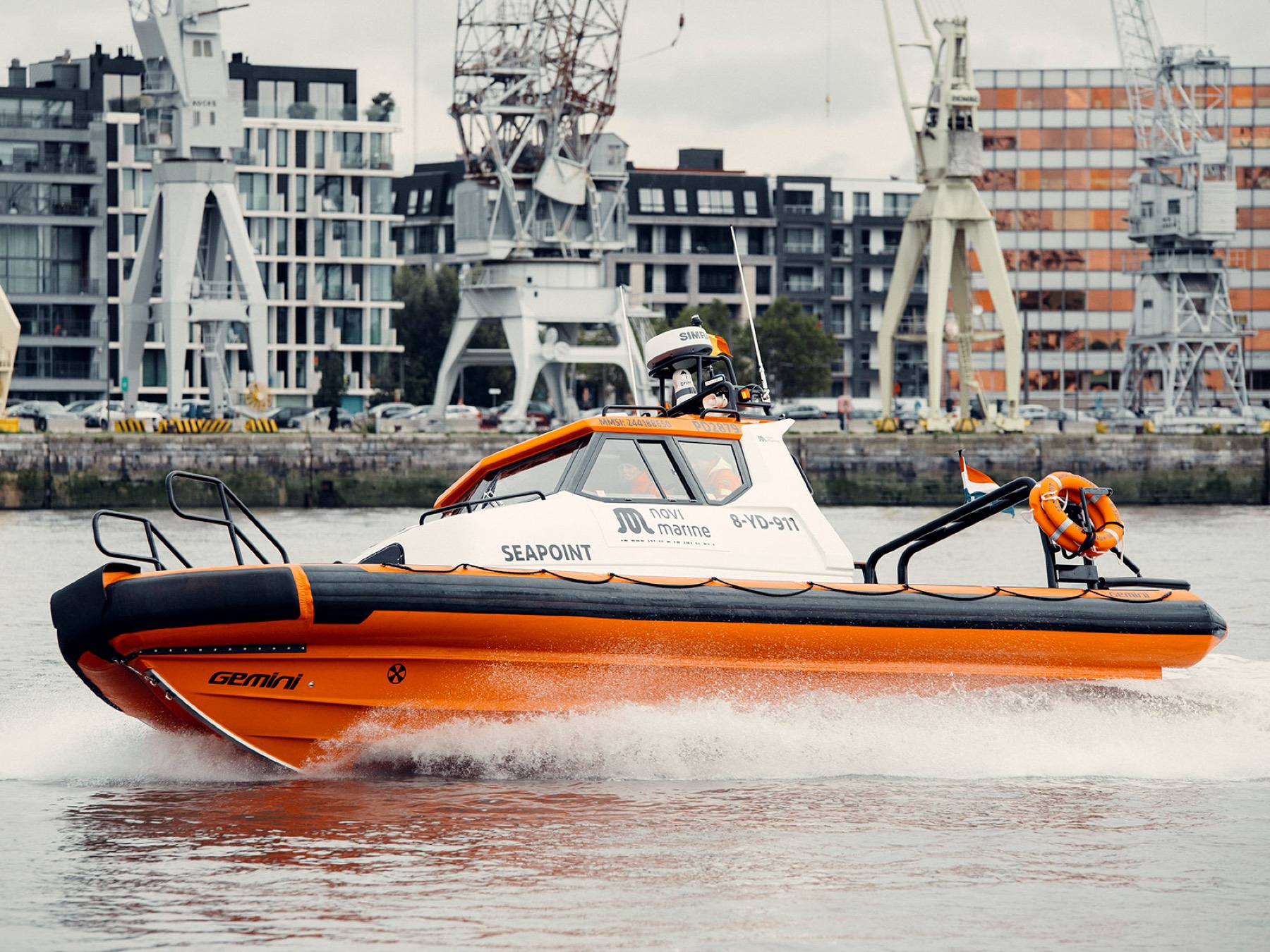

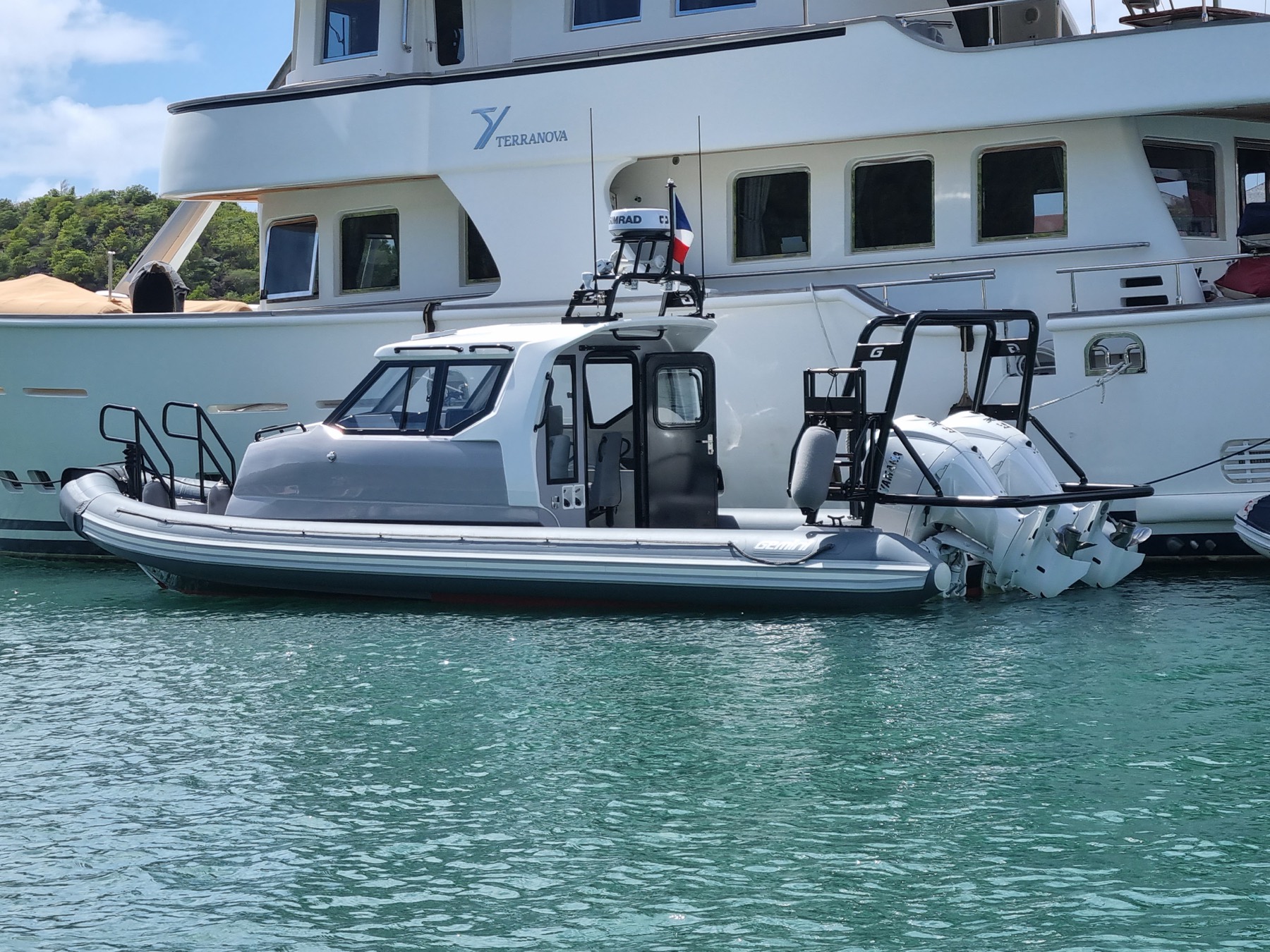

Also available as a Cabin RIB
Alongside the open version, the WR1060 is available as a Cabin RIB for extended operations in harsh conditions.
Technical data
Specifications
Dimensions
Length
10.60 m
Waterline length (approx.)
9.55 m
GRP hull length
9.68 m
Beam
3.25 m
GRP hull beam
2.42 m
Internal beam
1.90 m
Draft (approx.) · engine up / down
530 / 730 mm
Weight & capacity
Unladen weight · hull, deck and tubes
1,400 kg
Max. persons
18 persons
Max. payload · builder’s plate
1,600 kg
Max. fuel capacity
1,080 L
Engine options
Maximum engine power
700 hp / 522 kW
Shaft length · single engine
30 inch / 762 mm
Shaft length · twin engines
25 inch / 635 mm
Tubes & construction
Hull
Deep-V fibreglass hull
Tube material
Hypalon 1670 dtex
Air chambers
7
Tube pressure
0.25 bar
Design category & ISO
Design category
B
ISO
6185-4
Standard equipment
Tubes & protection
- Hypalon tubes (1670 dtex)
- 2 reinforced rubbing strakes
- Full-length grab line
- 7 inflation valves
- 7 pressure relief valves
- Internally taped seams
Hull & deck
- Vacuum-infused deep-V fibreglass hull
- Vacuum-infused deck
- 2 stainless-steel bow eyes
- Bow protection for the anchor line
- Anchor locker
- Aluminium keel protection
- 4 transom reinforcements
- Engine splashwell
- Under-deck cable duct
- Self-draining non-slip deck
Tanks & accessories
- 2 under-deck fuel compartments with 2 × 328 litre tanks
- 2 stainless-steel transom towing points
- Double-action tube inflation pump
- Repair kit

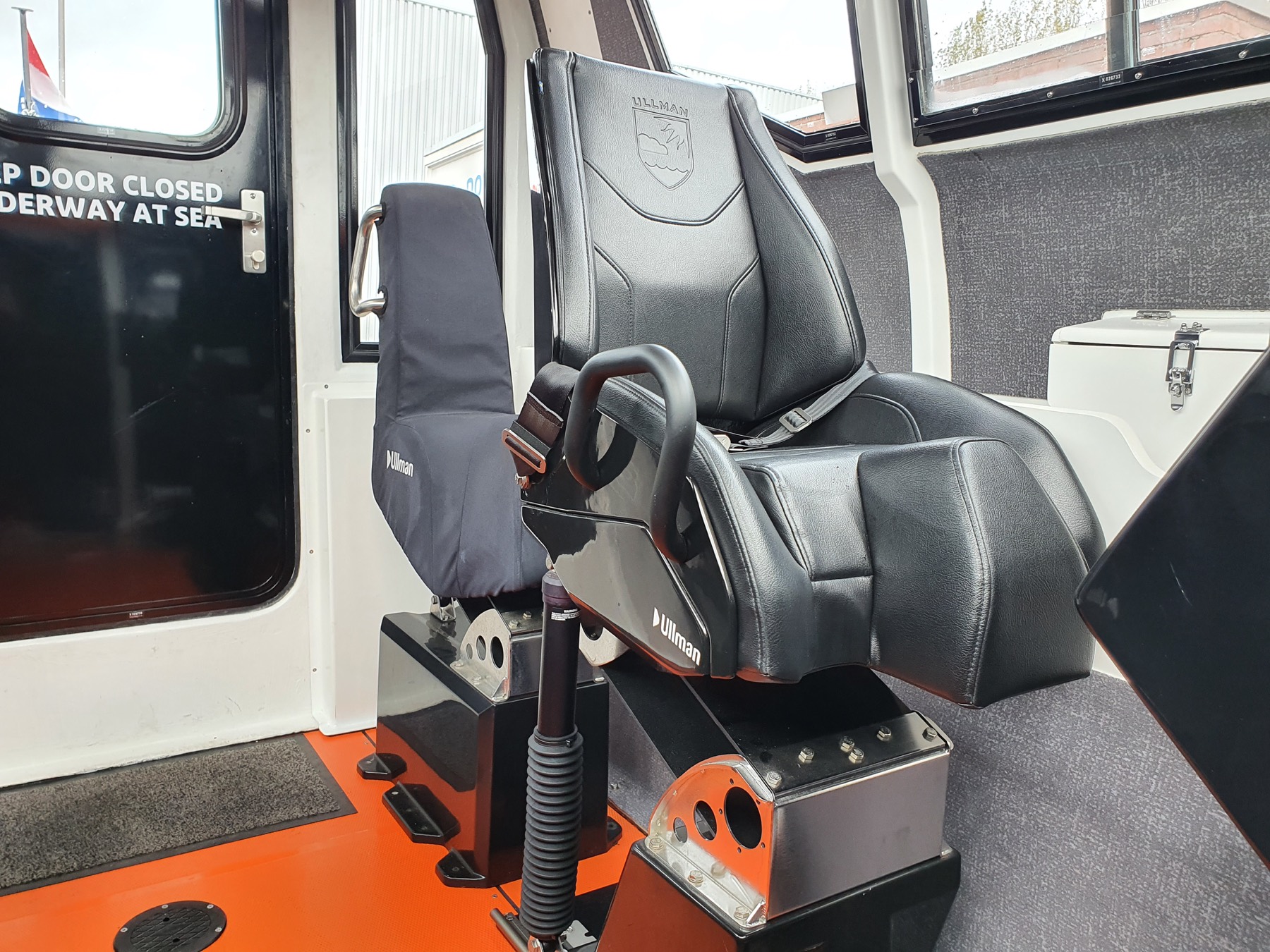

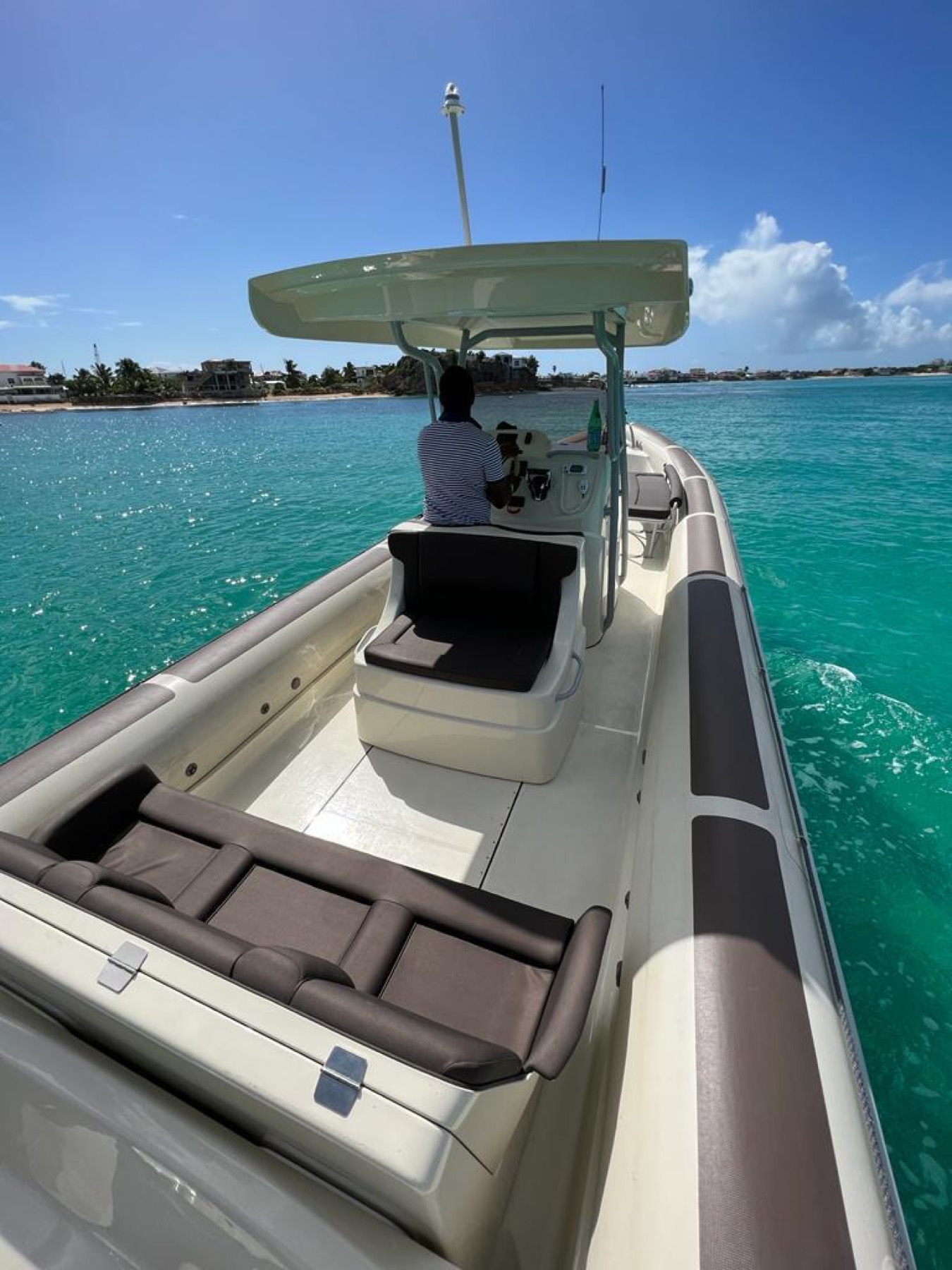

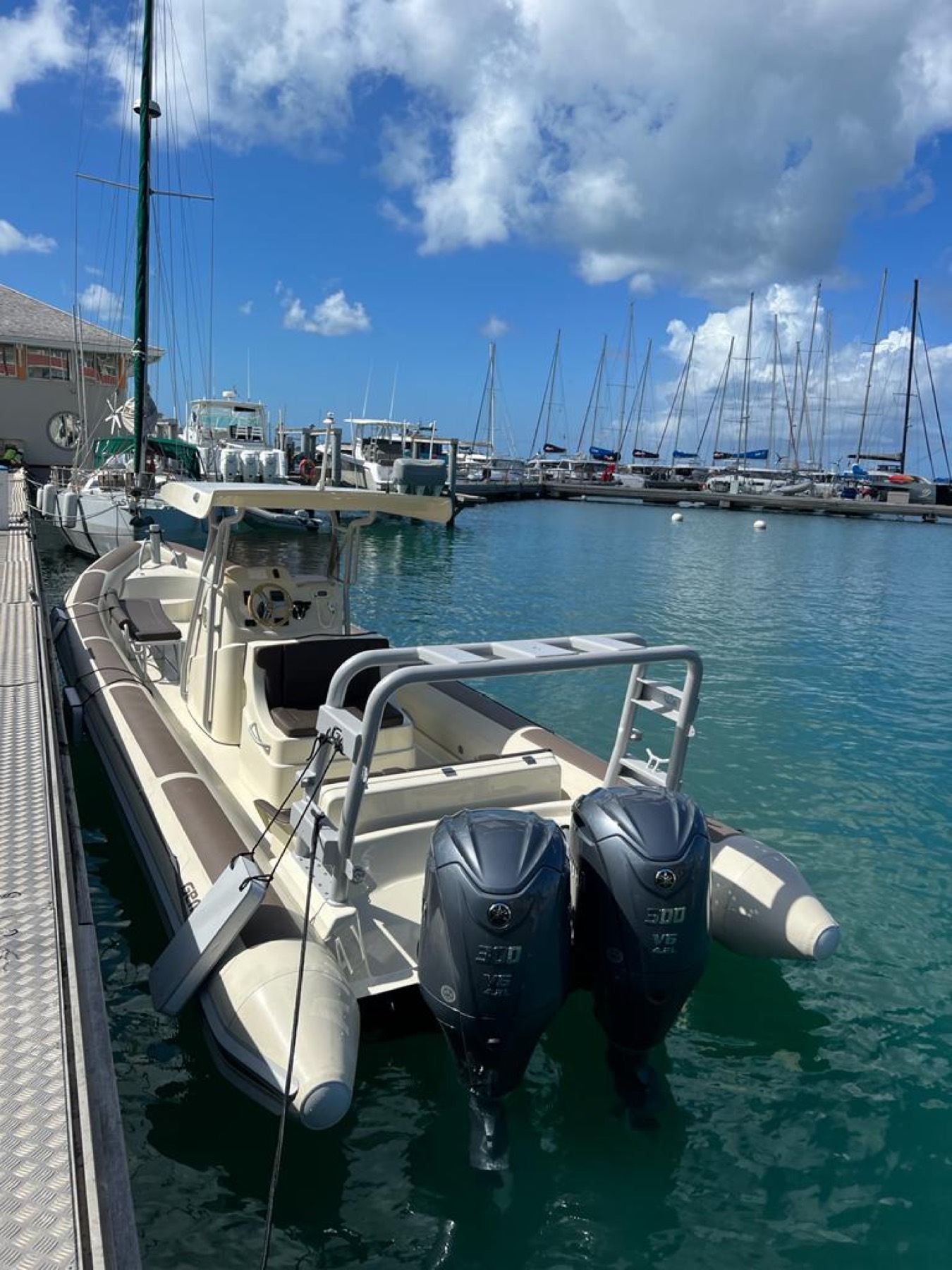

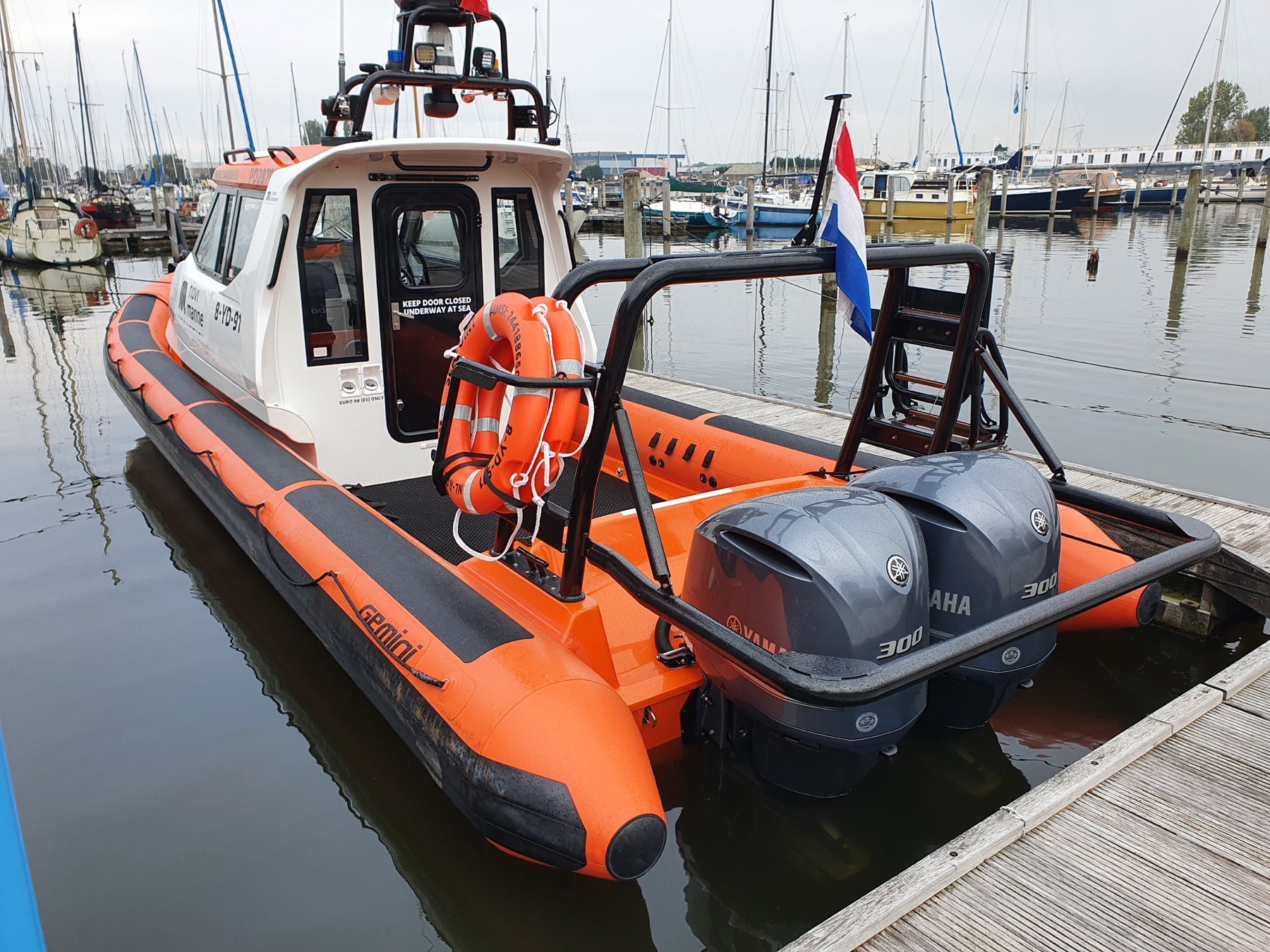

In pictures

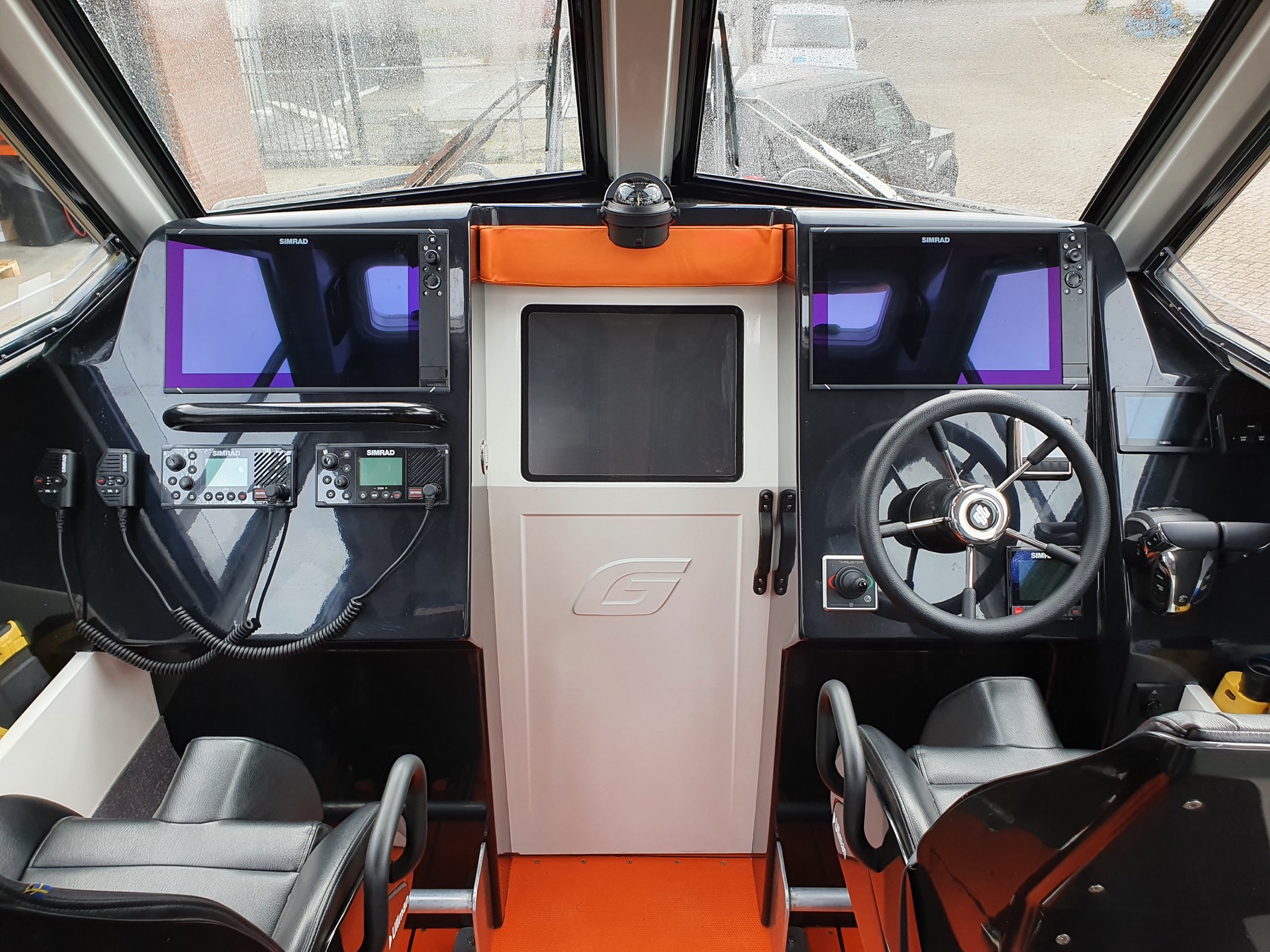

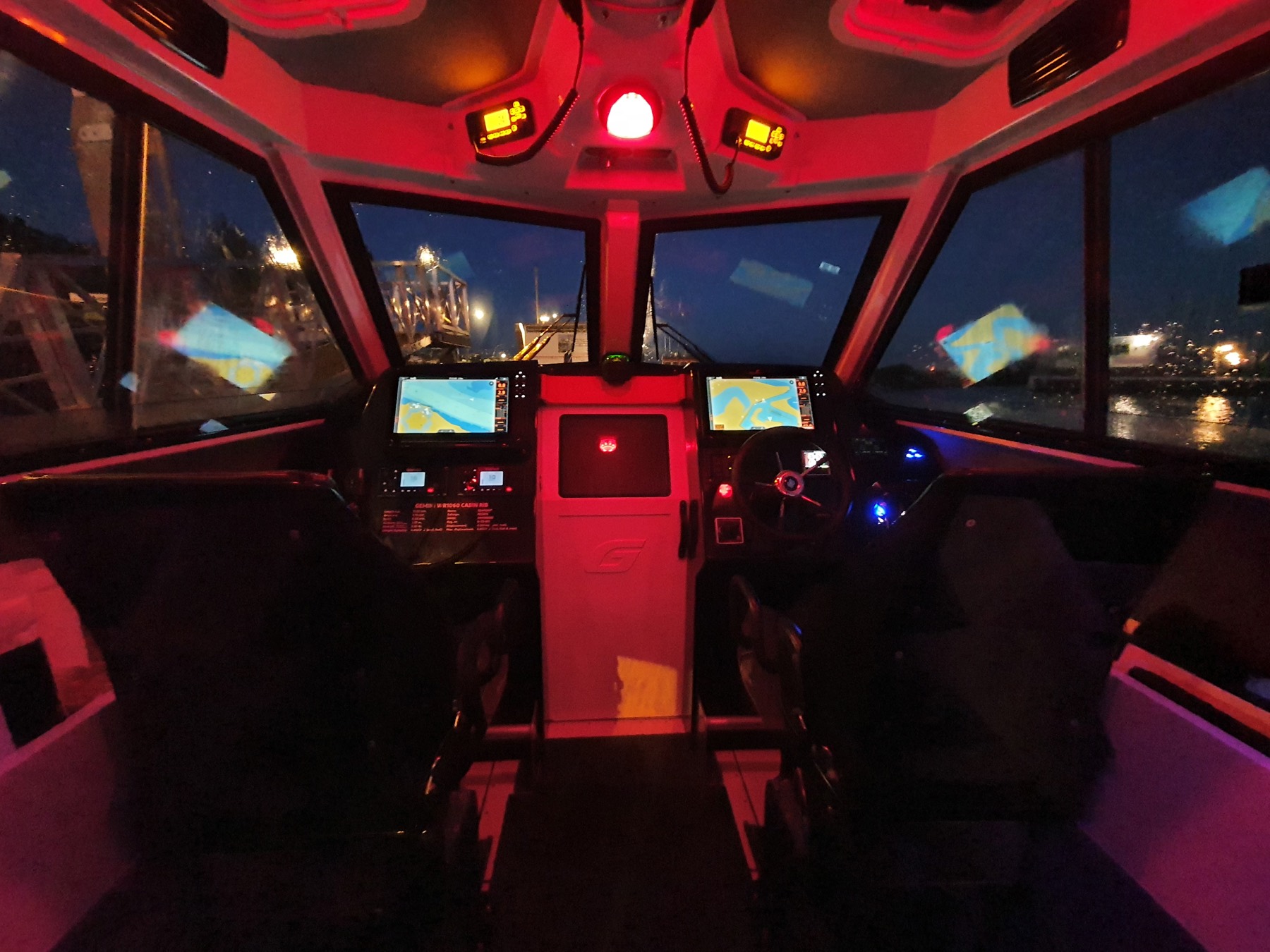

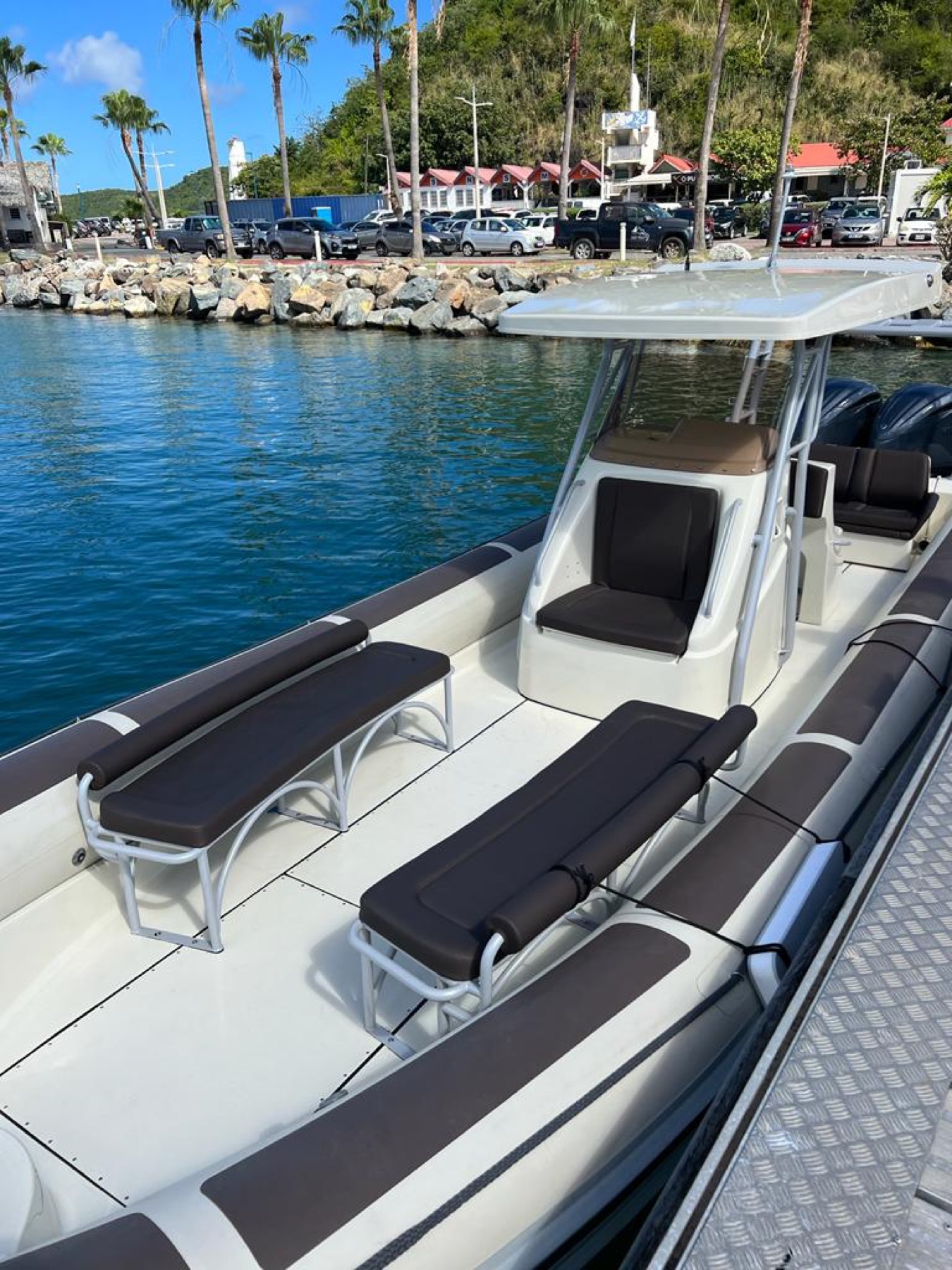

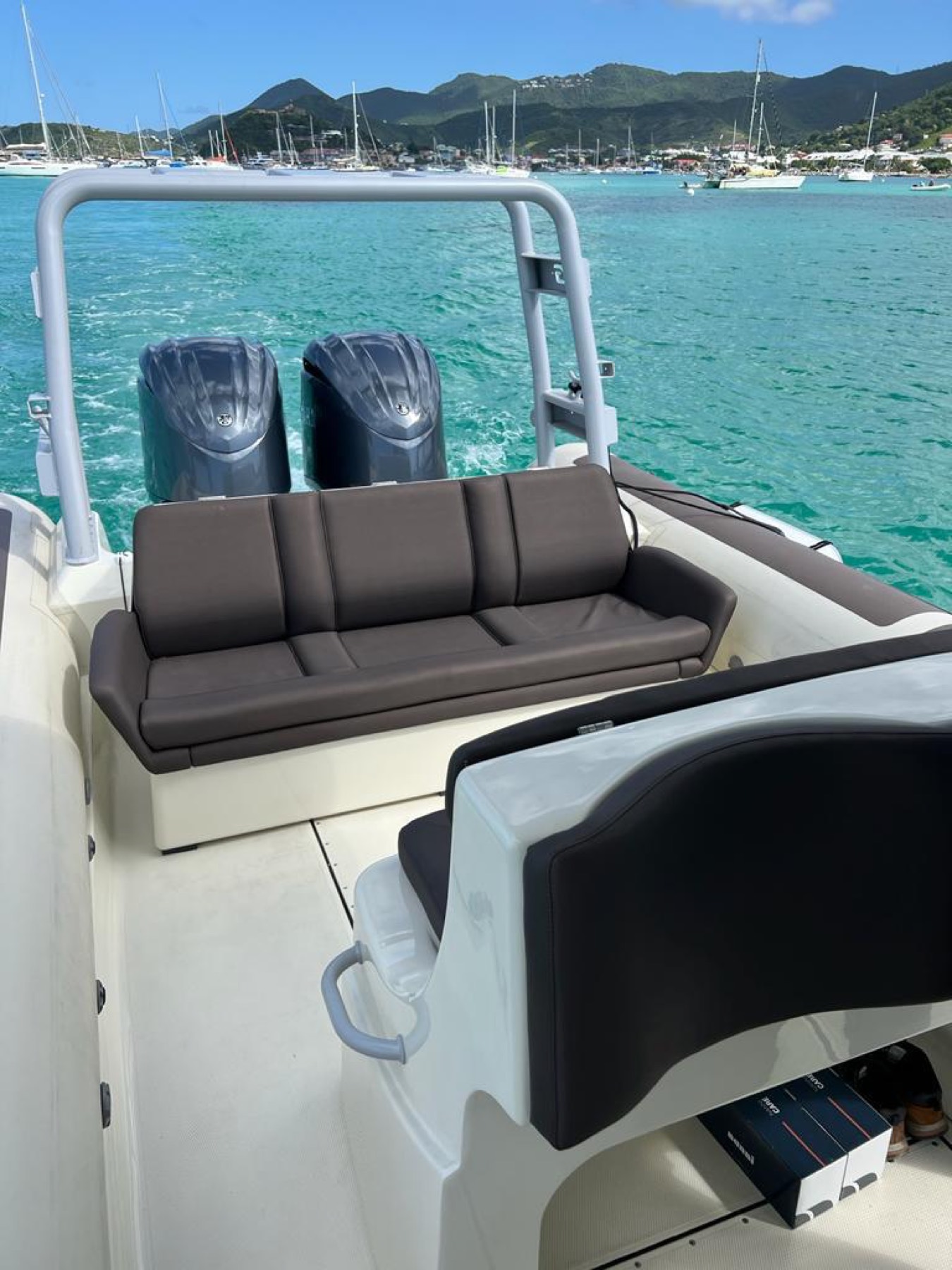

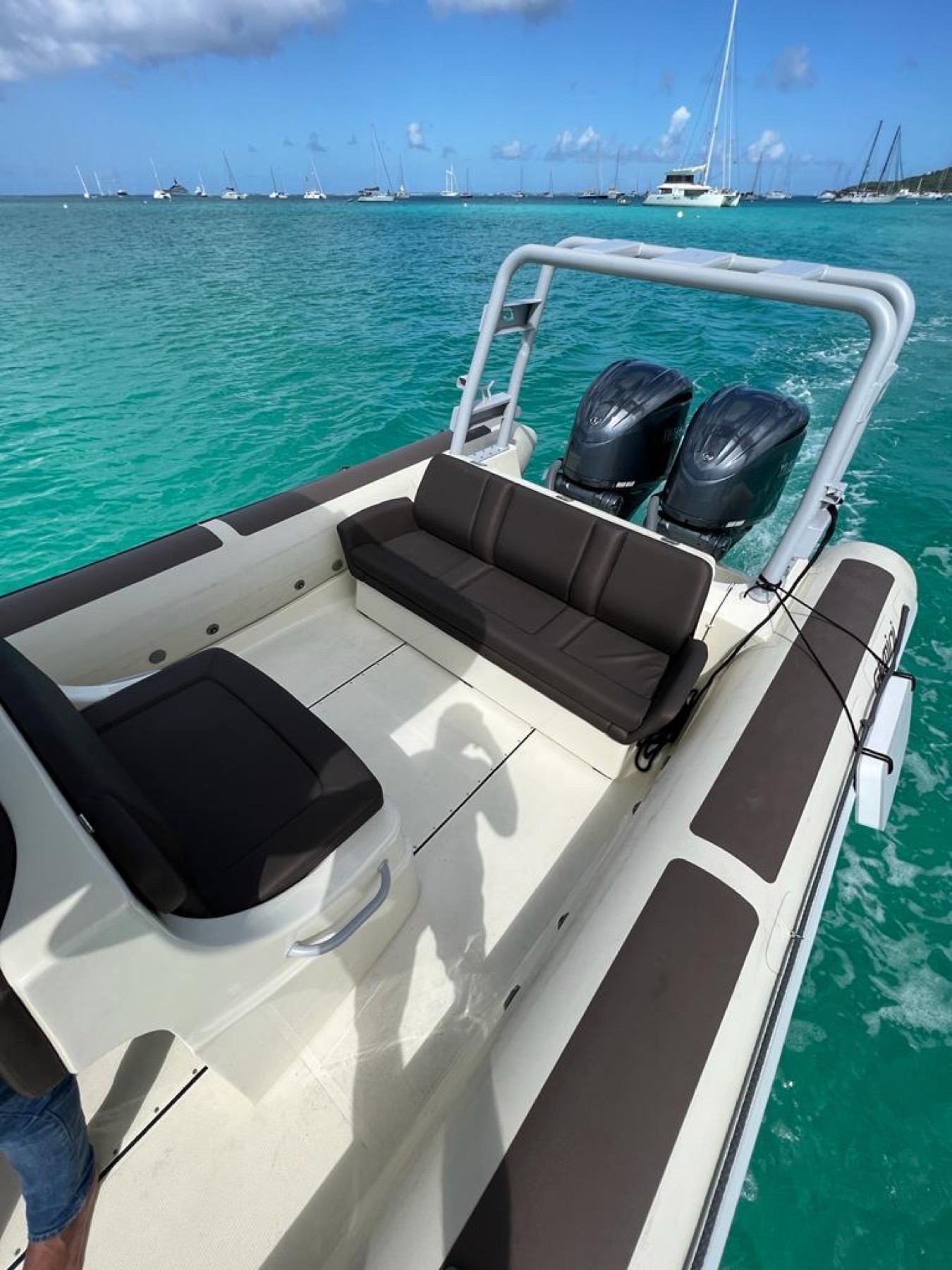

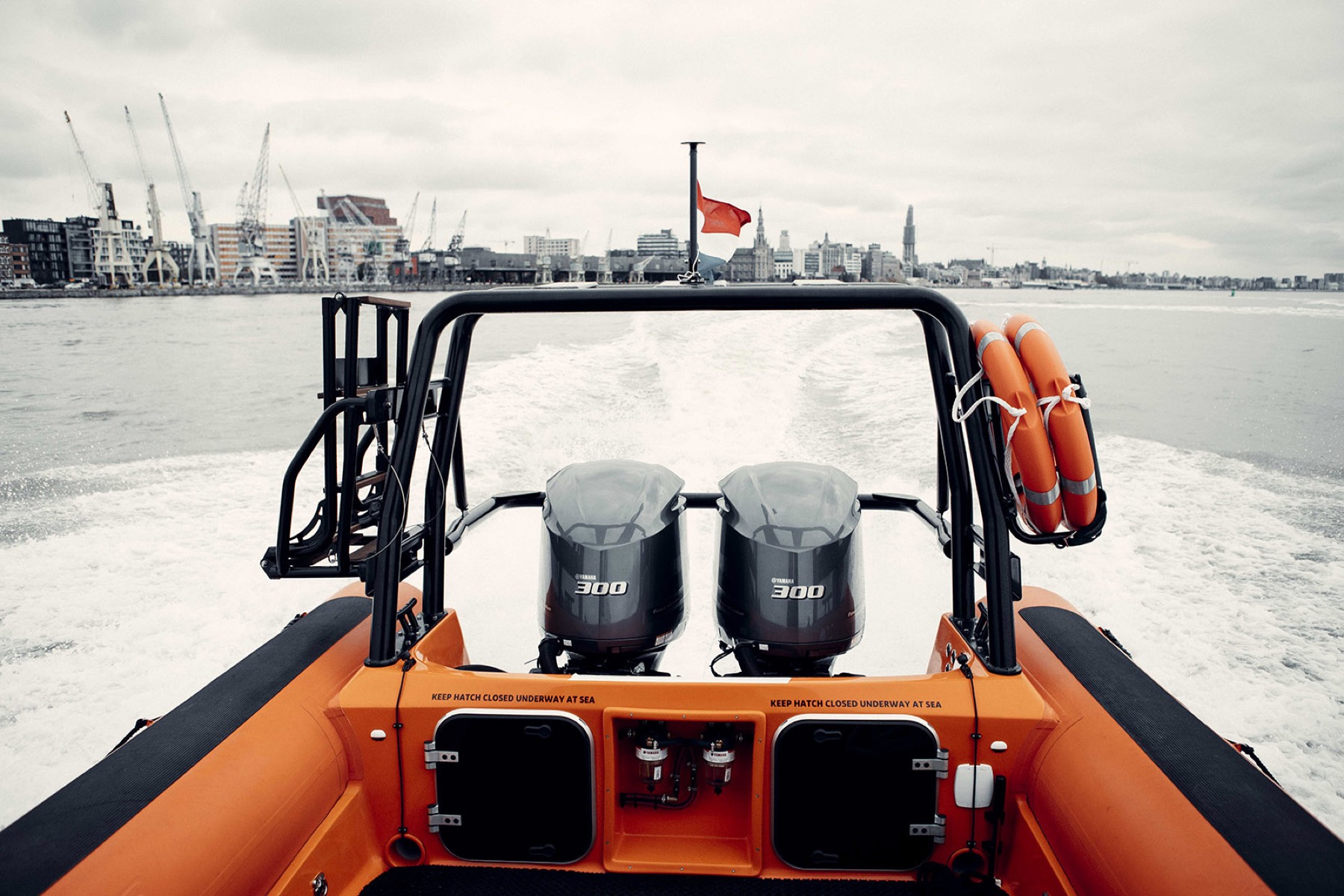

Gemini Marine WR1060 Gallery
Interested in the Gemini WR1060?
Tell us how you plan to use the WR1060. We will advise on engines, deck layout and equipment and propose a configuration that fits your operation.
