Gemini Marine Waverider
Gemini Marine WR505
Compact and built for professional use. Agile, stable and configurable for your operation.
5.05 m length
Max. 7 persons
Max. 86 hp
Overview
About the Gemini WR505
The Gemini Marine WR505 is a compact professional RIB built to the same standard as the larger Waverider models. Its lightweight, strong hull combines responsive handling with stability in a wide range of conditions.
Novi Marine can tailor the engines, console, seating and deck equipment to your application.
Key features
✓
Agile and stable
Responsive handling in narrow waterways and reassuring stability in a wide range of conditions.
✓

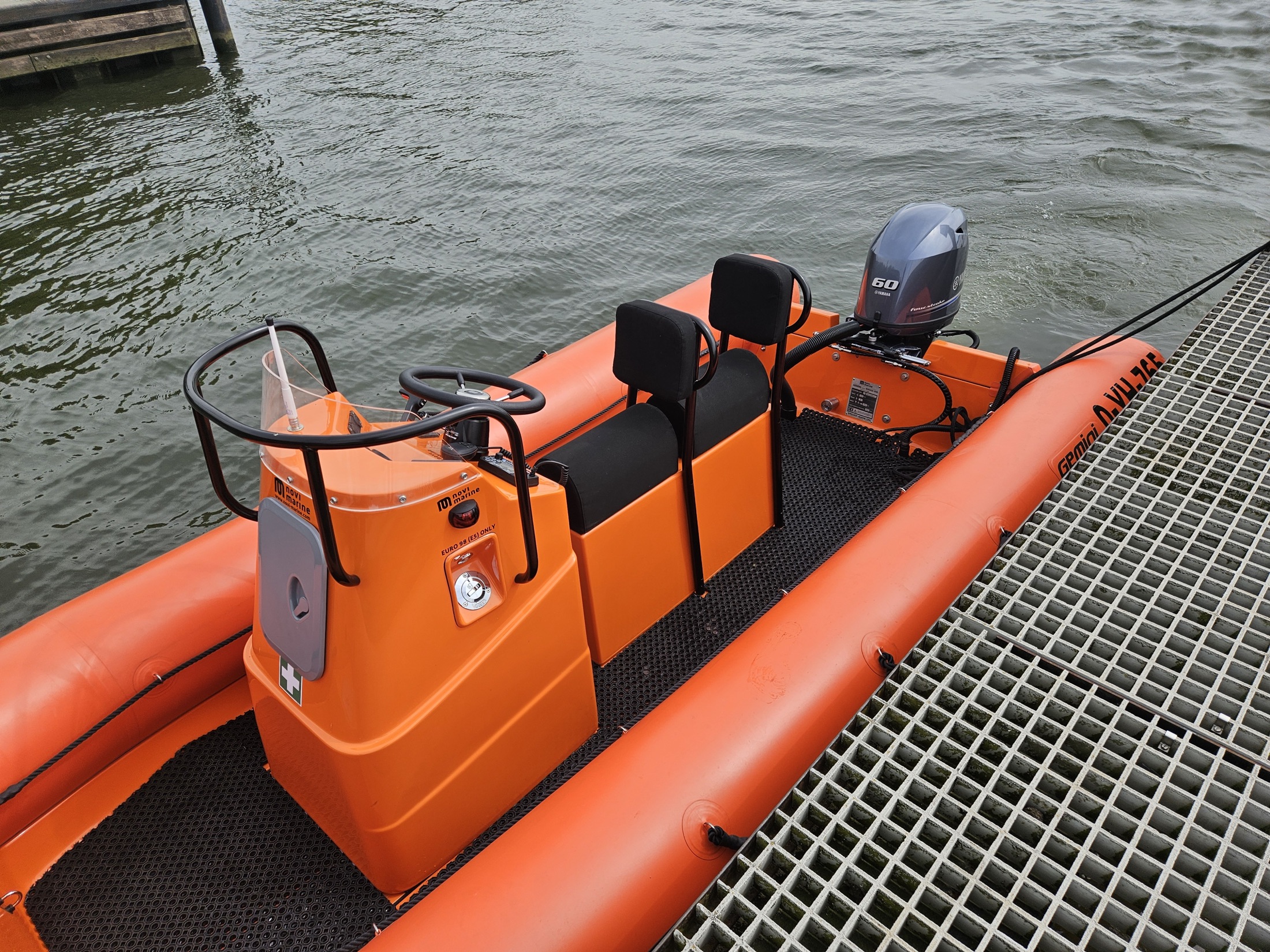

Configurable deck layout
The console, seating and working deck are configured around your crew and operation.
✓
Lightweight and practical
Efficient to operate and easy to transport by trailer.
Technical data
Specifications
Dimensions
Length
5.05 m
Waterline length (approx.)
3.70 m
GRP hull length
4.15 m
Beam
2.20 m
GRP hull beam
1.61 m
Internal beam
1.20 m
Draft (approx.) · engine up / down
—
Weight & capacity
Unladen weight · hull, deck and tubes
260 kg
Max. persons
7 persons
Max. payload · builder’s plate
450 kg
Max. fuel capacity
75 L
Engine options
Maximum engine power
86 hp / 61 kW
Shaft length · single engine
20 inch / 508 mm
Shaft length · twin engines
15 inch / 381 mm
Tubes & construction
Hull
Deep-V fibreglass hull
Tube material
Hypalon 1100 dtex
Air chambers
5
Tube pressure
0.25 bar
Design category & ISO
Design category
C
ISO
6185-3
Standard equipment
Tubes & protection
- Hypalon tubes (1100 dtex)
- 1 reinforced rubbing strake
- Full-length grab line
- 3 inflation valves
- 3 pressure relief valves
- Internally taped seams
Hull & deck
- 1 stainless-steel bow eye
- Bow protection for the anchor line
- Anchor locker
- Aluminium keel protection
- Transom reinforcement
- Self-draining non-slip deck
Tanks & accessories
- 1 under-deck fuel compartment with 1 × 75 litre tank
- 2 stainless-steel transom towing points
- Double-action tube inflation pump
- Repair kit
In pictures

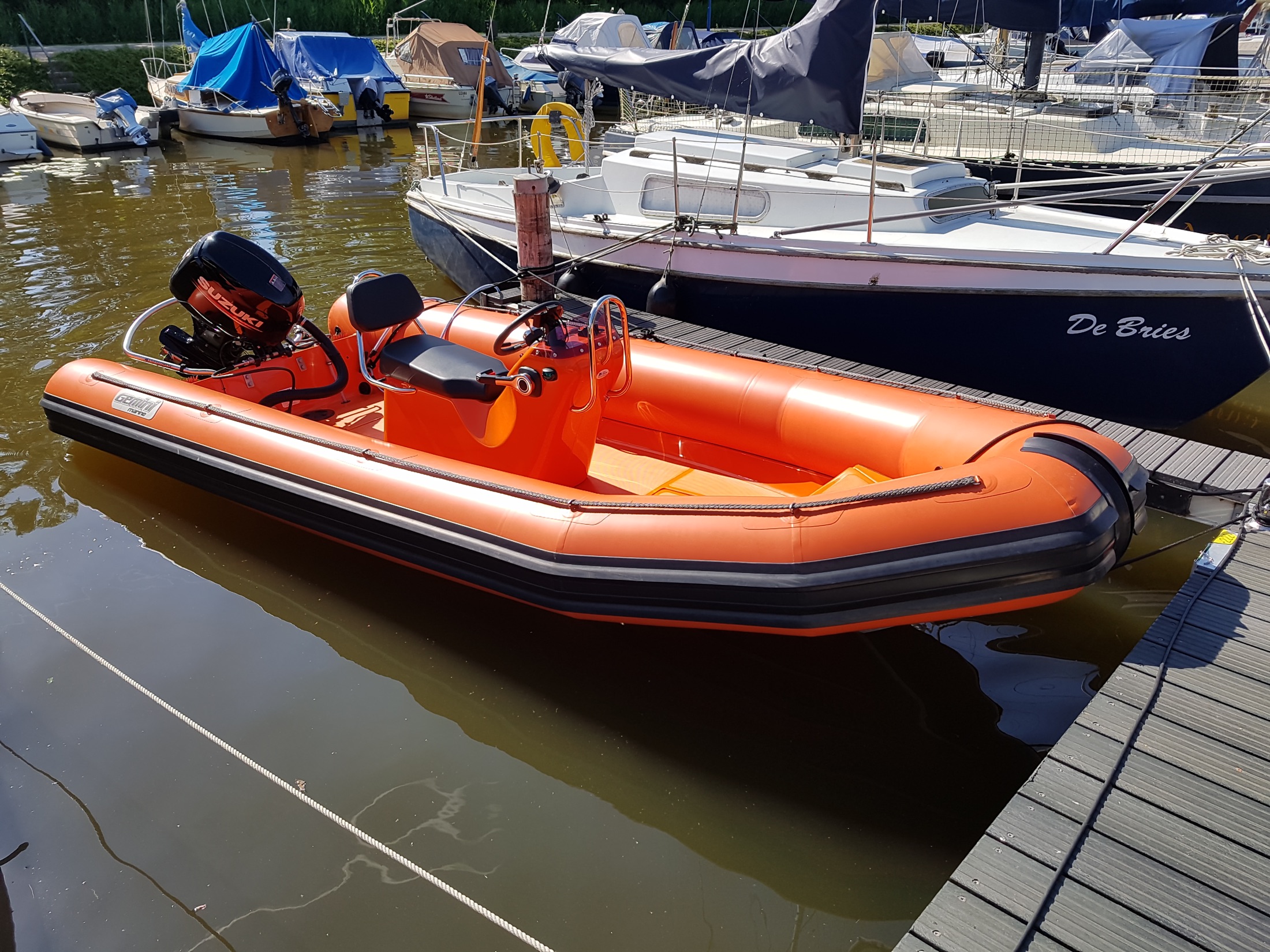

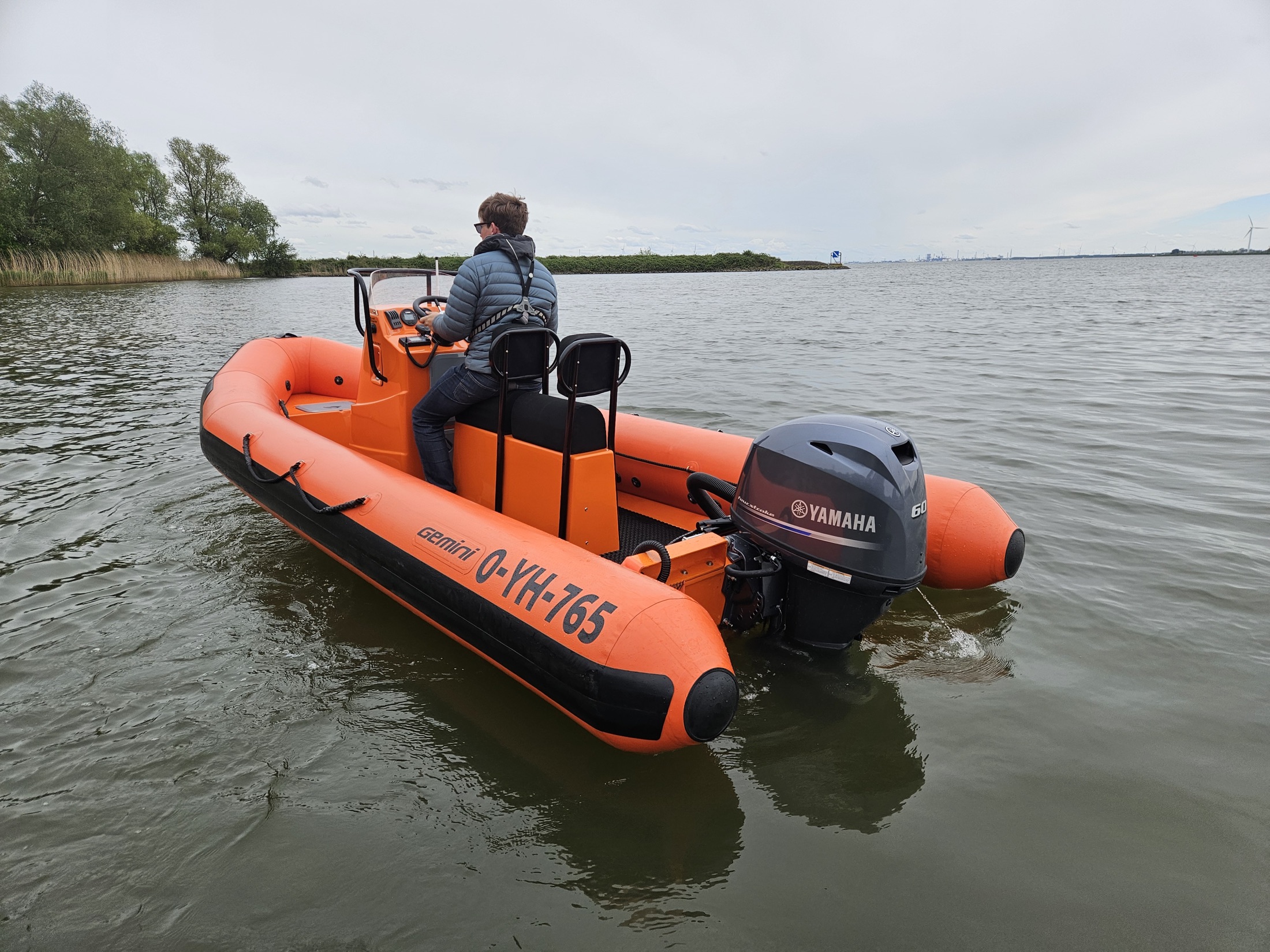

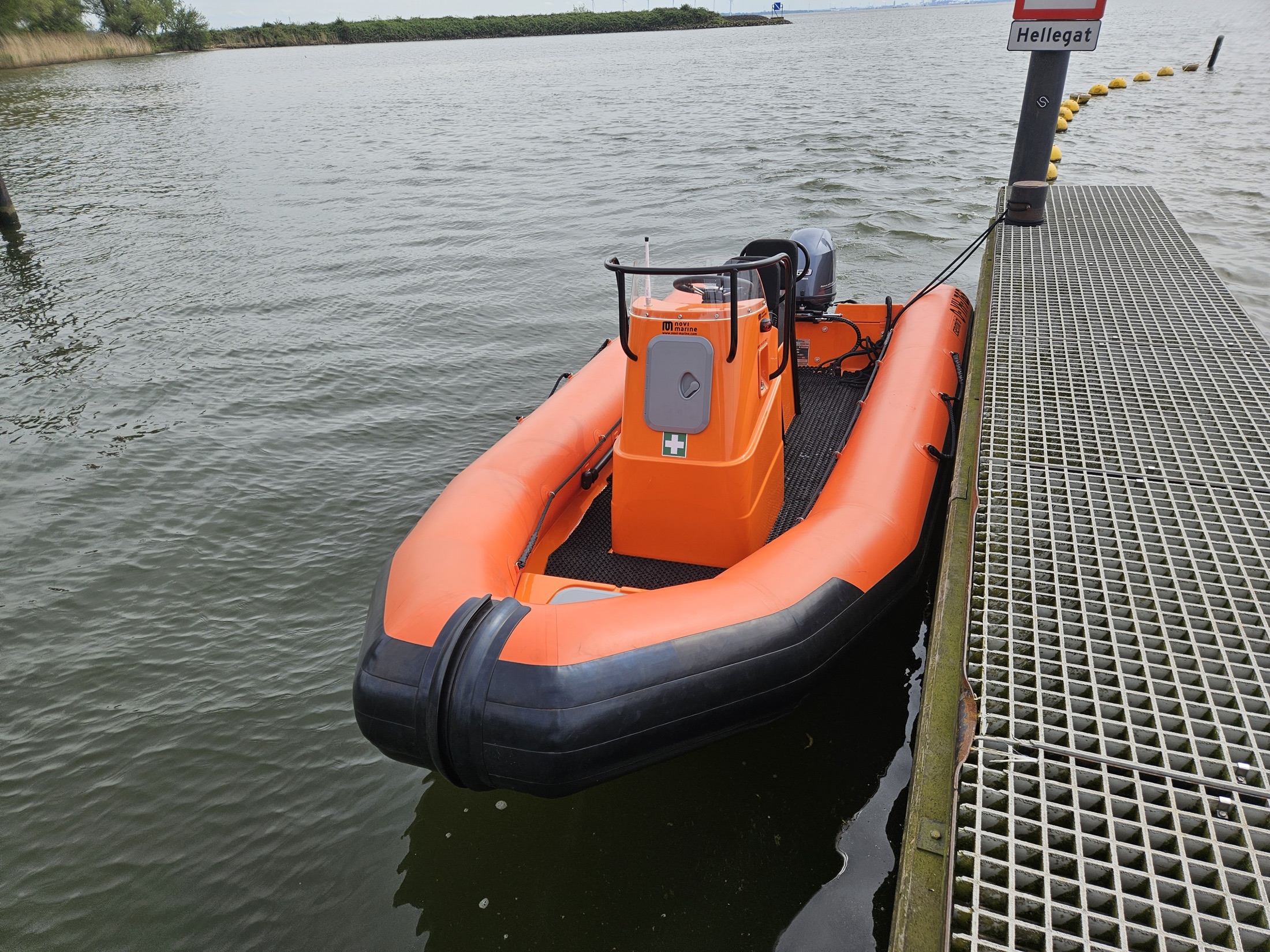

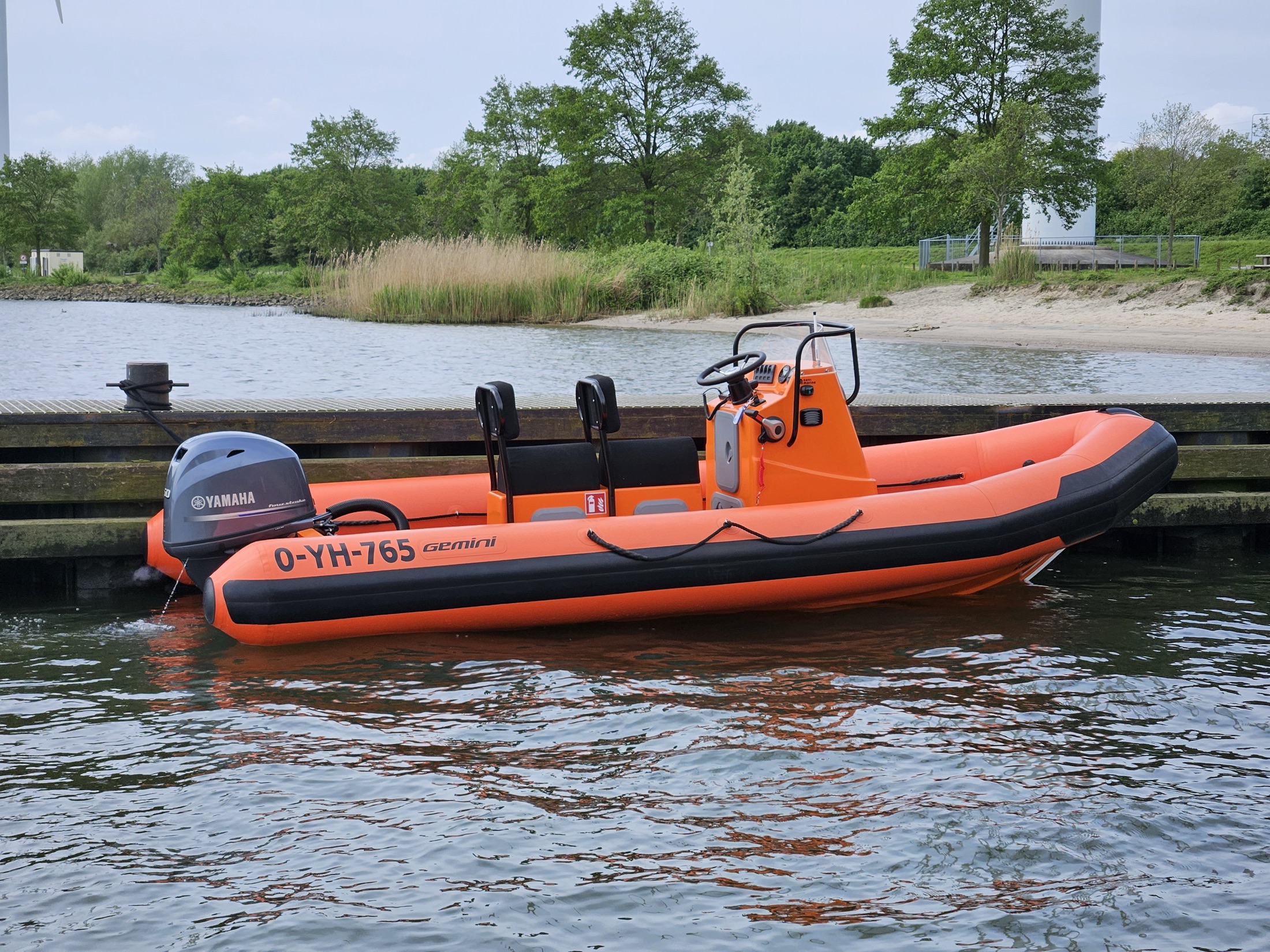

Gemini Marine WR505 Gallery
Interested in the Gemini WR505?
Tell us how you plan to use the WR505. We will advise on engines, deck layout and equipment and propose a configuration that fits your operation.
