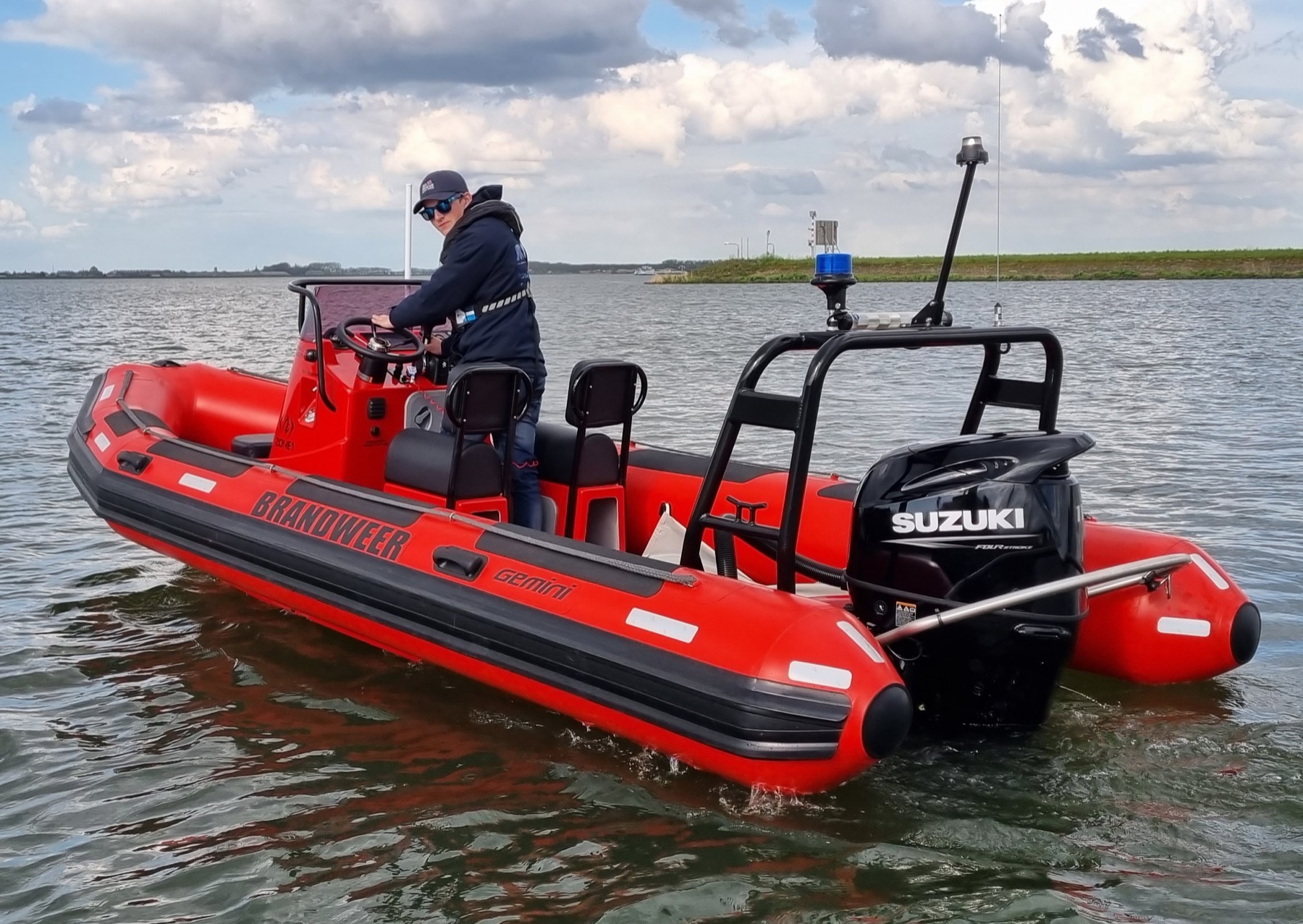

Gemini Marine WR550
A compact, robust RIB with agile handling and proven capability for rescue, patrol and support.
5.50 m length
Max. 8 persons
Max. 182 hp
Overview
About the Gemini WR550
The Gemini Marine WR550 packs strength, agility and versatility into a compact platform. Its deep-V hull and reinforced Hypalon tubes provide a safe, dry ride and dependable control in coastal waters and rougher conditions.
With a choice of consoles, seating, engines and T-tops, Novi Marine configures the WR550 for your application, from rescue and patrol to commercial support.
Key features
✓
Compact and seaworthy
The deep-V hull combines responsive manoeuvrability with a comfortable, dry ride.
✓
Proven rescue platform
The WR550 is used worldwide for rescue work and demanding professional operations.
✓
Configured for the mission
The console, seating, engines and optional protection are tailored to your crew and operation.
Technical data
Specifications
Dimensions
Length
5.50 m
Waterline length (approx.)
4.02 m
GRP hull length
4.56 m
Beam
2.30 m
GRP hull beam
1.61 m
Internal beam
1.21 m
Draft (approx.) · engine up / down
300 / 700 mm
Weight & capacity
Unladen weight · hull, deck and tubes
350 kg
Max. persons
8 persons
Max. payload · builder’s plate
762 kg
Max. fuel capacity
130 L
Engine options
Maximum engine power
182 hp / 135 kW
Shaft length · single engine
20 inch / 508 mm
Shaft length · twin engines
20 inch / 508 mm
Tubes & construction
Hull
Deep-V fibreglass hull
Tube material
Hypalon 1100 dtex
Air chambers
5
Tube pressure
0.25 bar
Design category & ISO
Design category
B
ISO
6185-3
Standard equipment
Tubes & protection
- Hypalon tubes (1100 dtex)
- 2 reinforced rubbing strakes
- Full-length grab line
- 5 inflation valves
- 5 pressure relief valves
- Internally taped seams
Hull & deck
- 1 stainless-steel bow eye
- Bow protection for the anchor line
- Anchor locker
- Aluminium keel protection
- Transom reinforcement
- Engine splashwell
- Under-deck cable duct
- Self-draining non-slip deck
Tanks & accessories
- 1 under-deck fuel compartment with 1 × 130 litre tank
- 2 stainless-steel transom towing points
- Double-action tube inflation pump
- Repair kit
In pictures

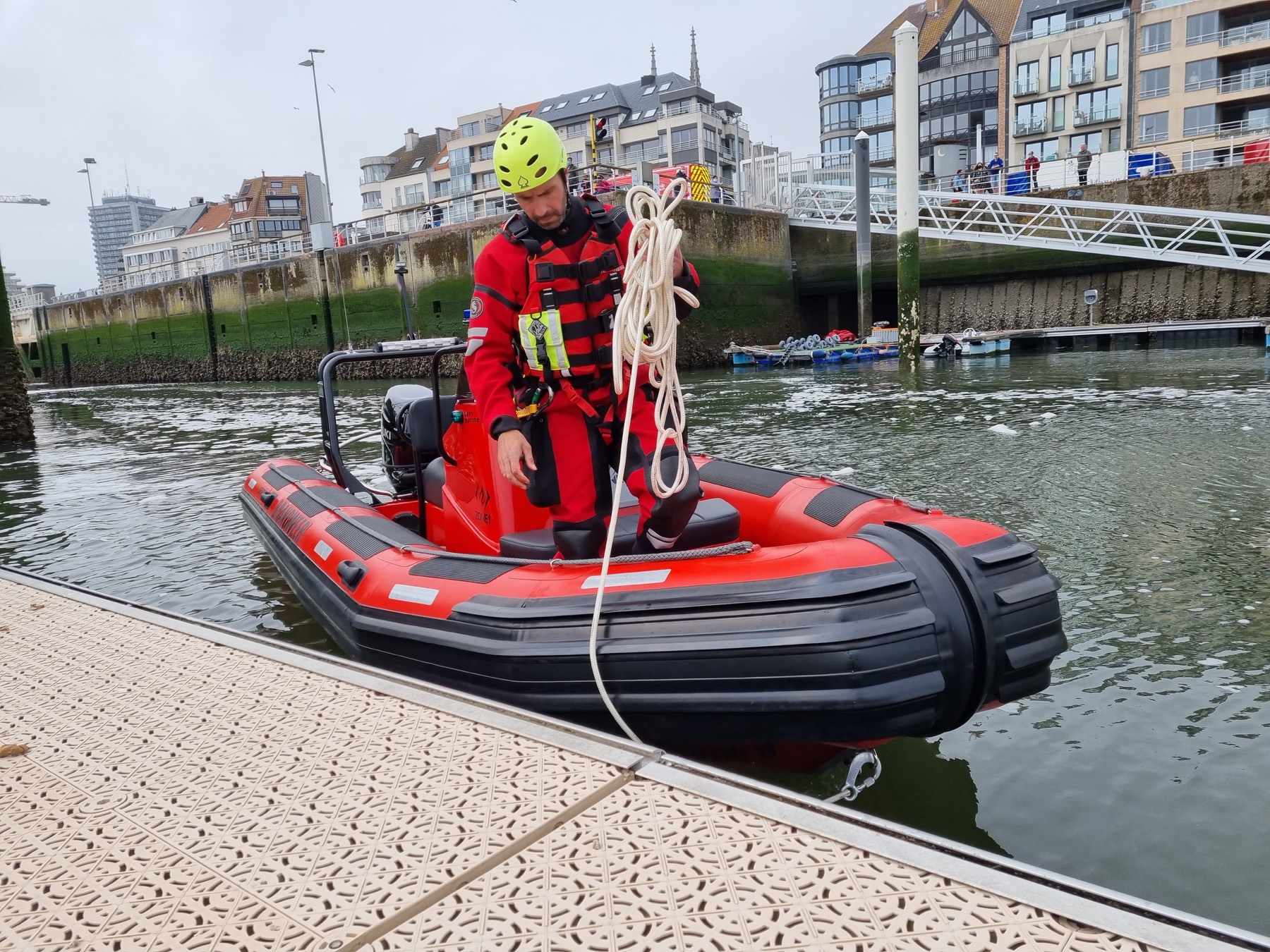

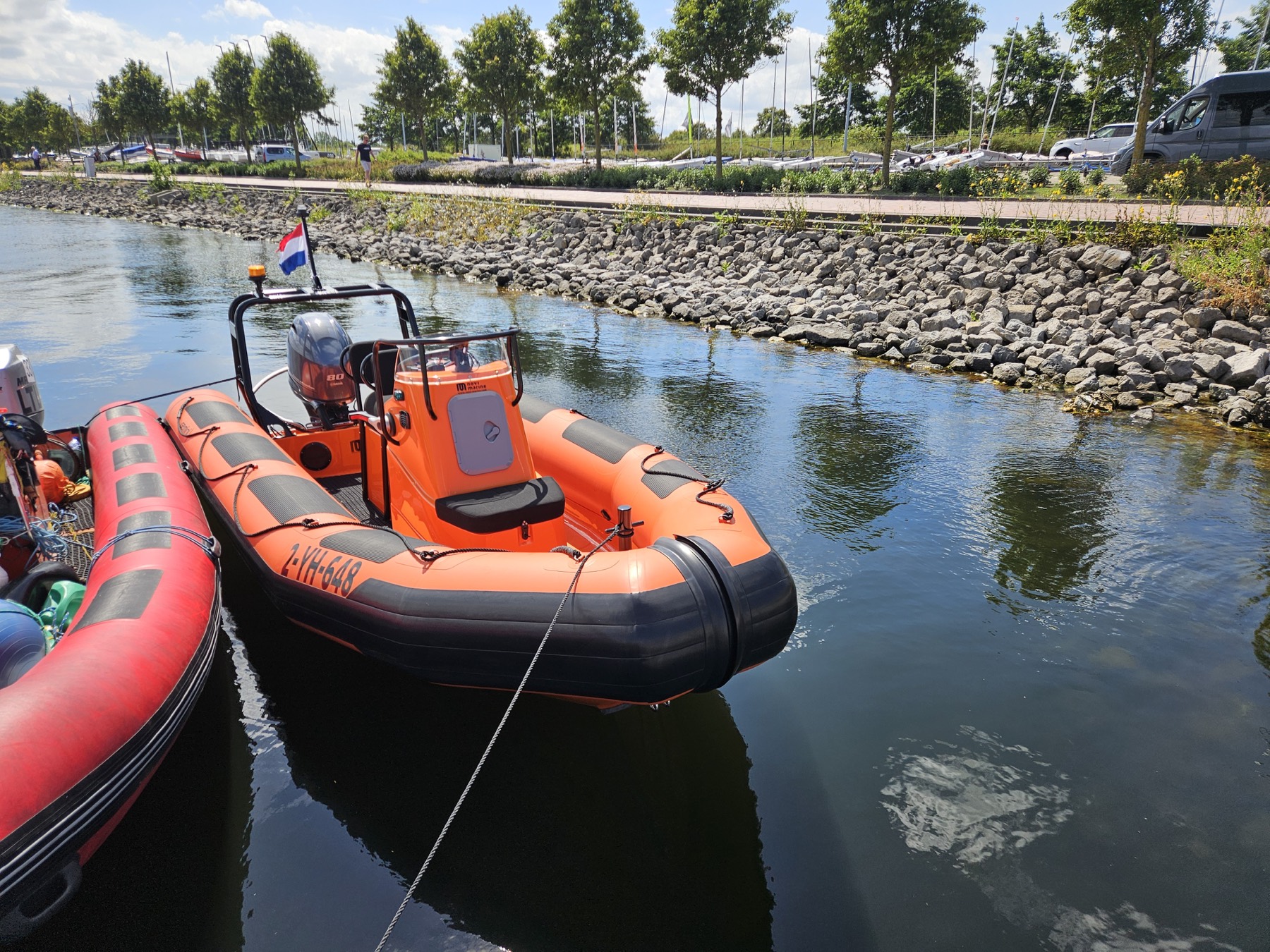

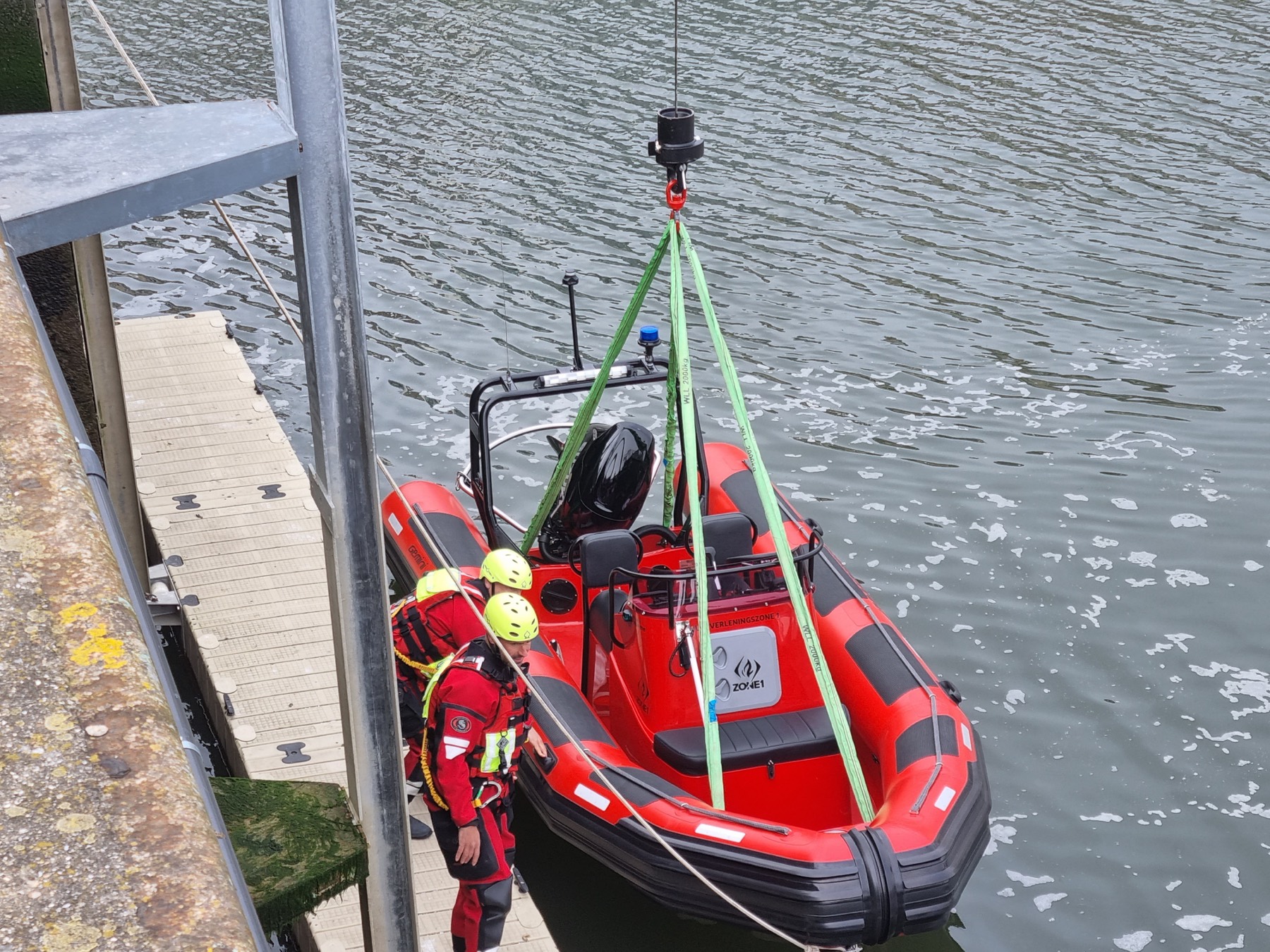

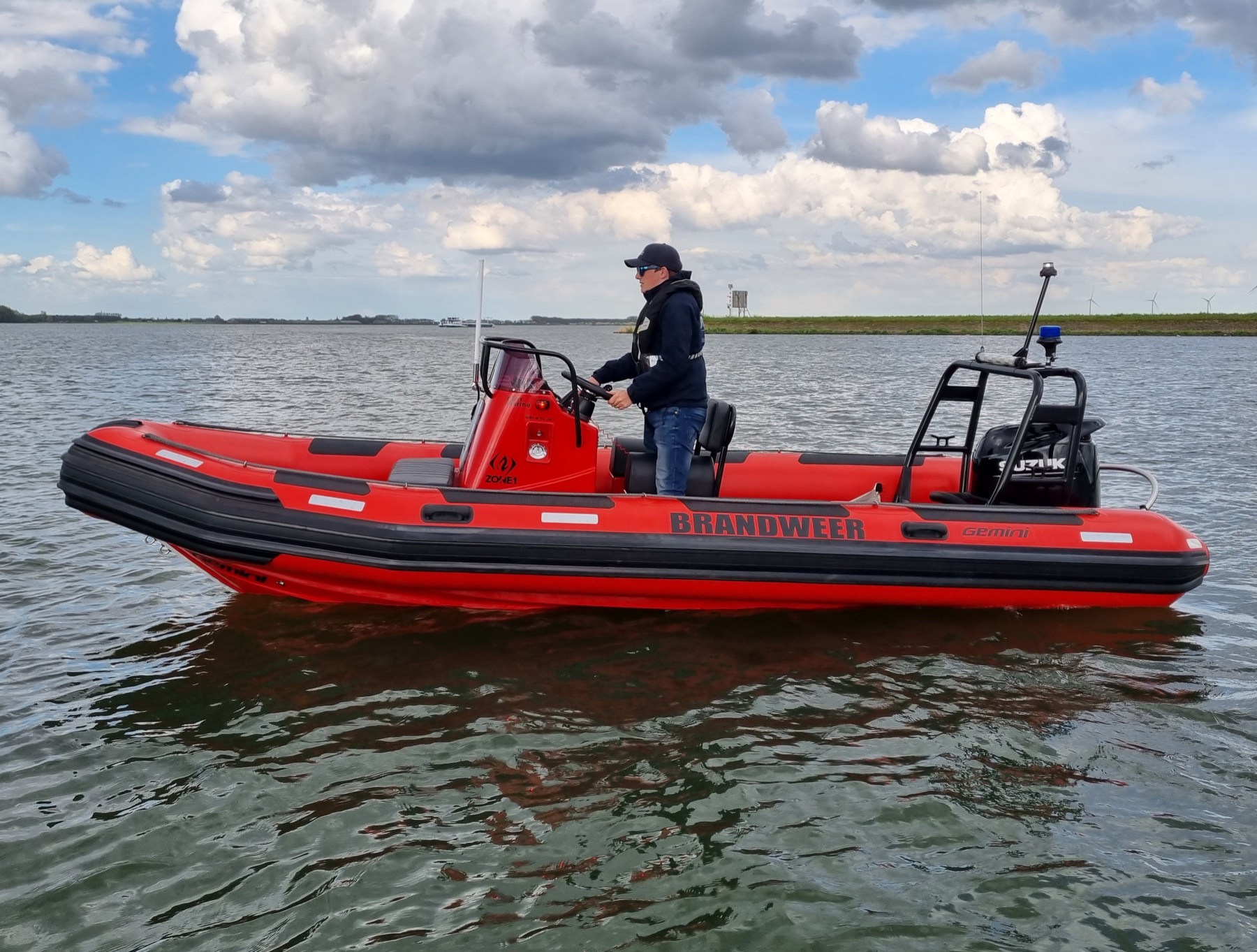

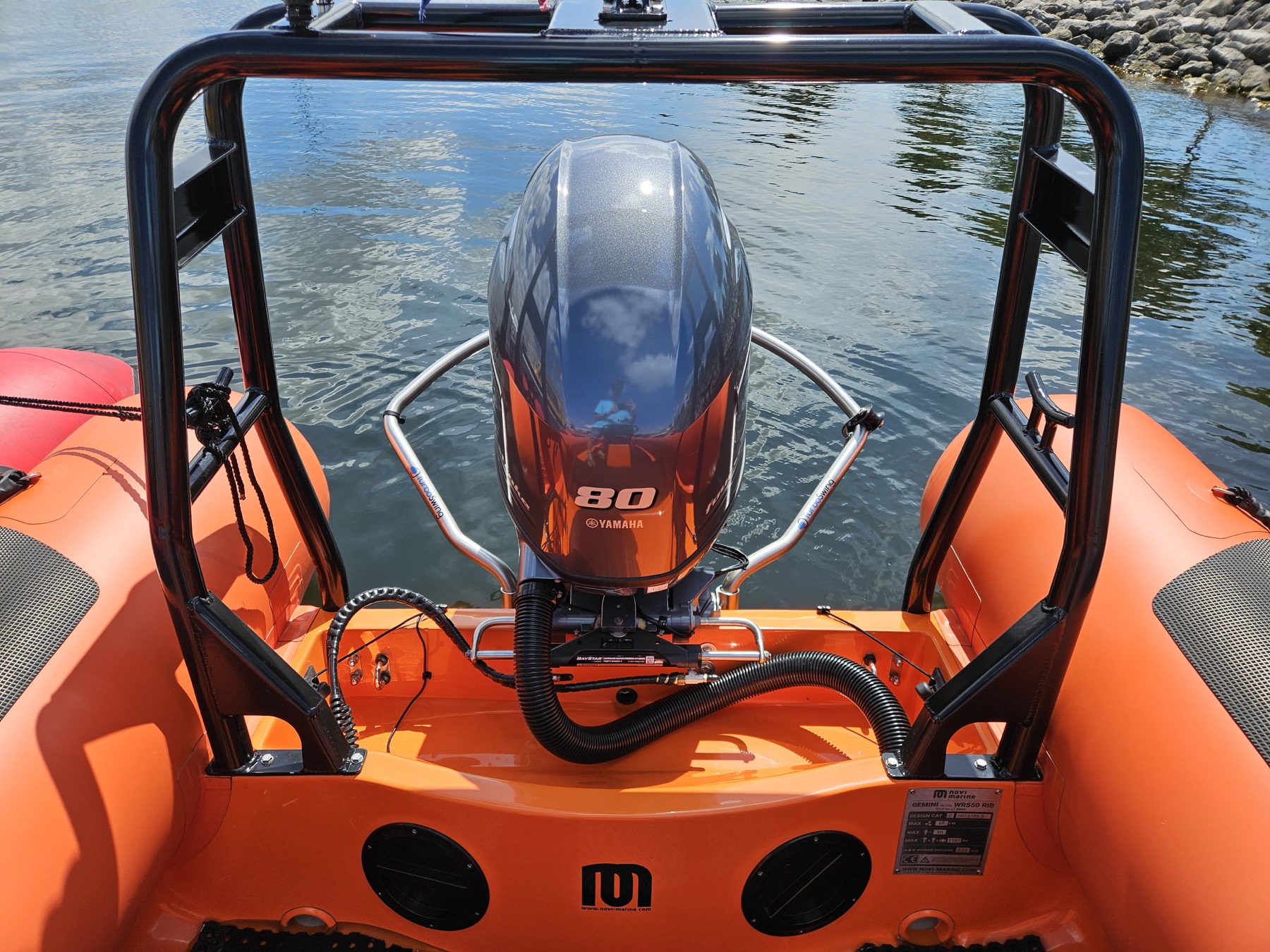

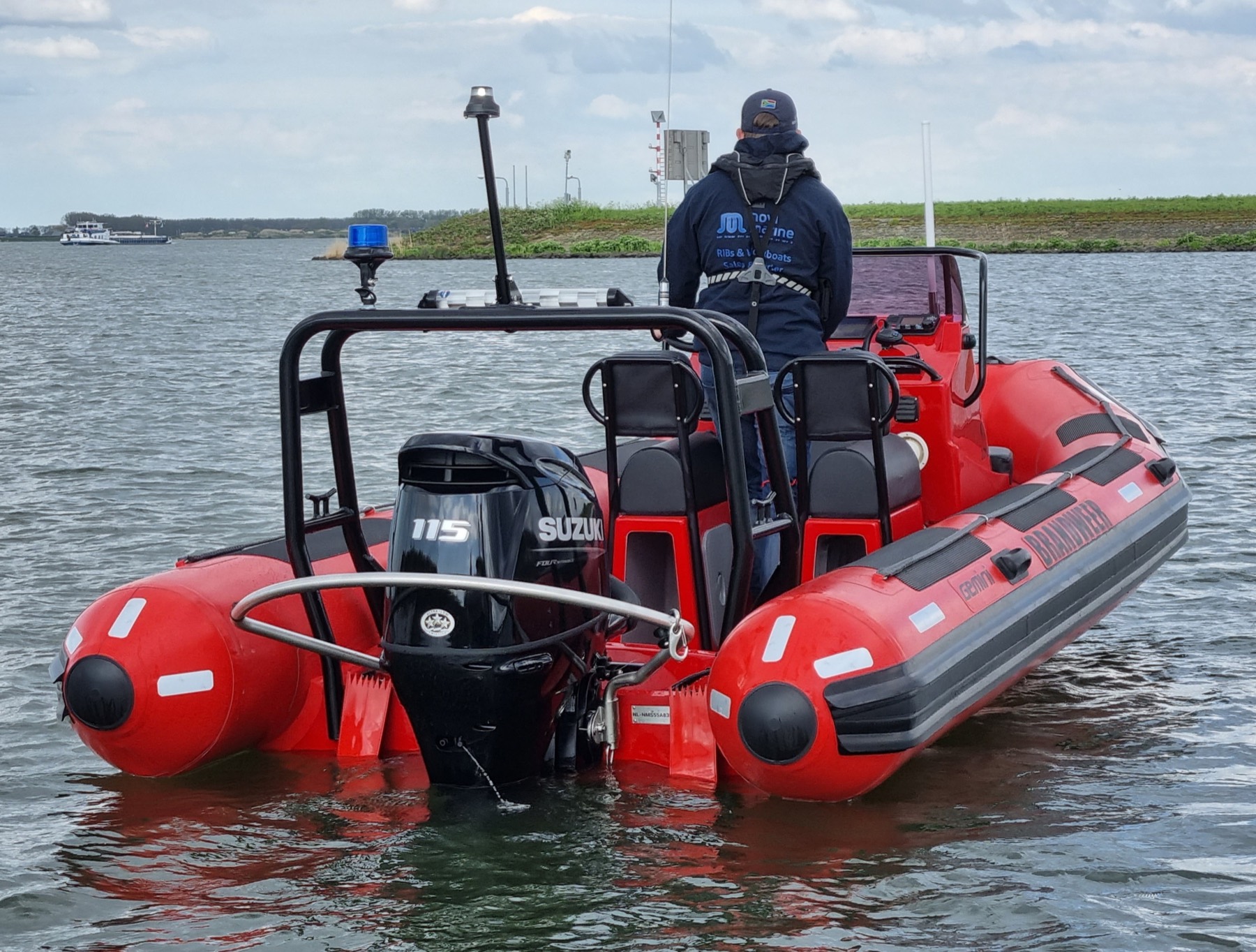

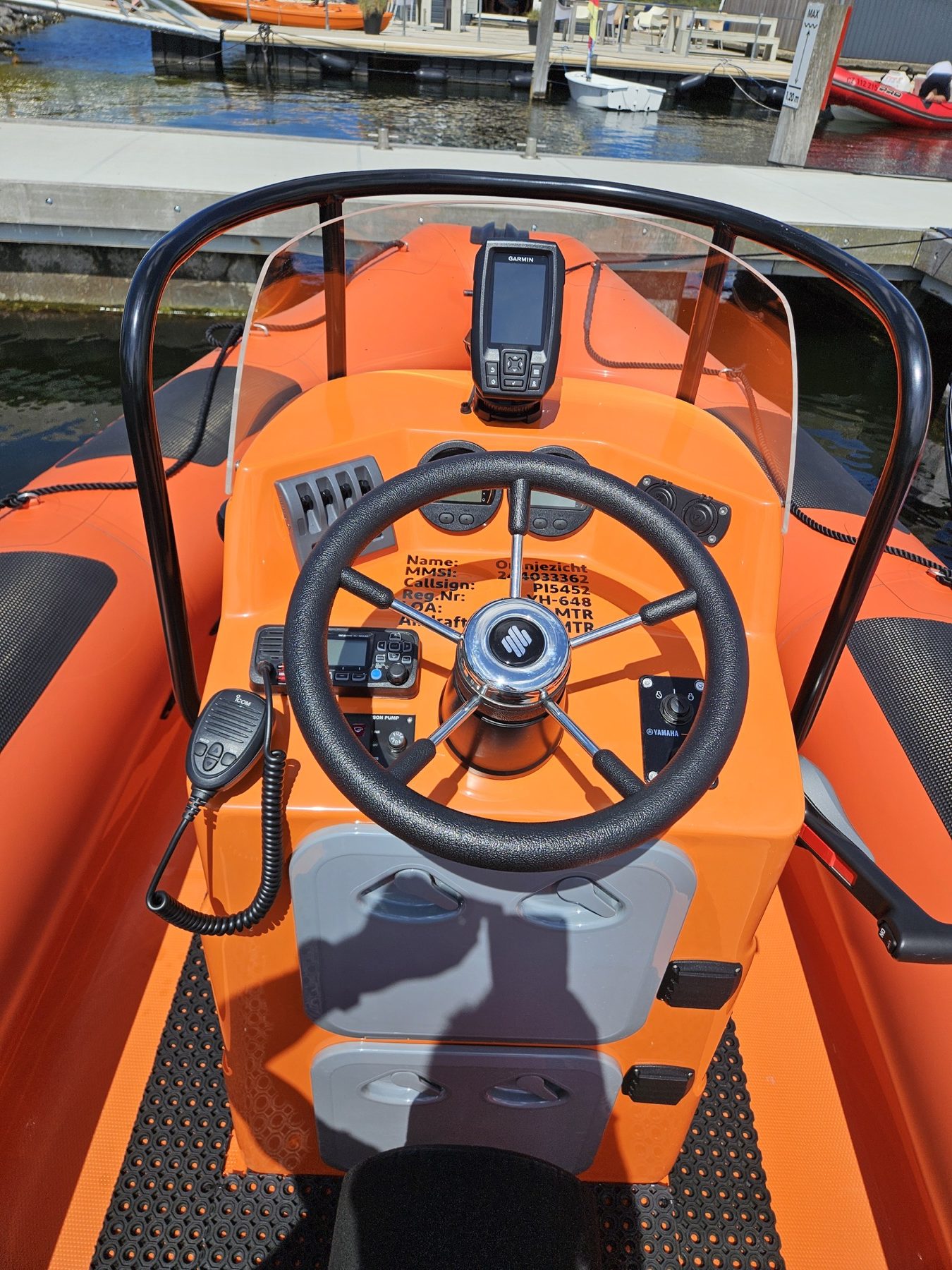

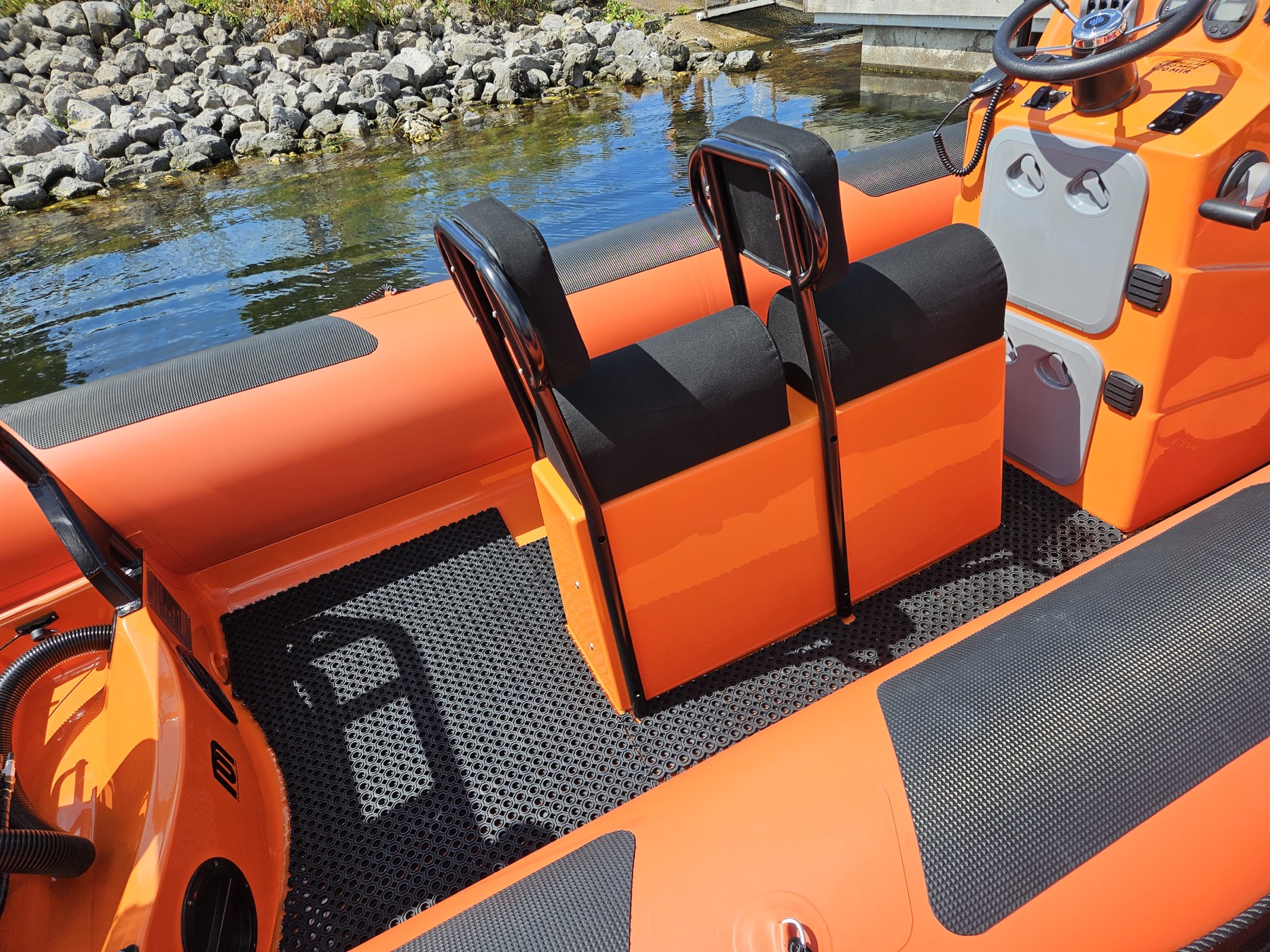

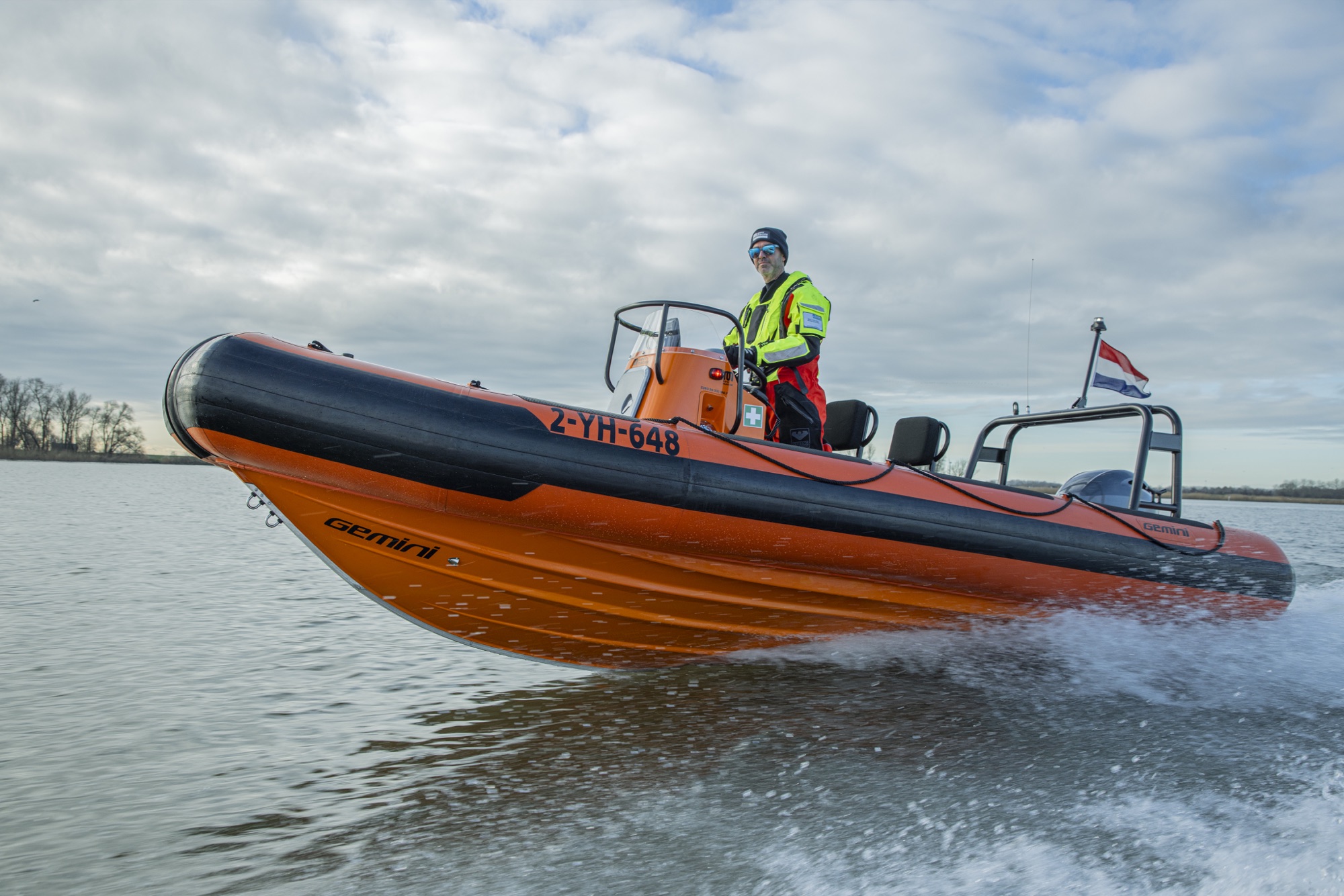

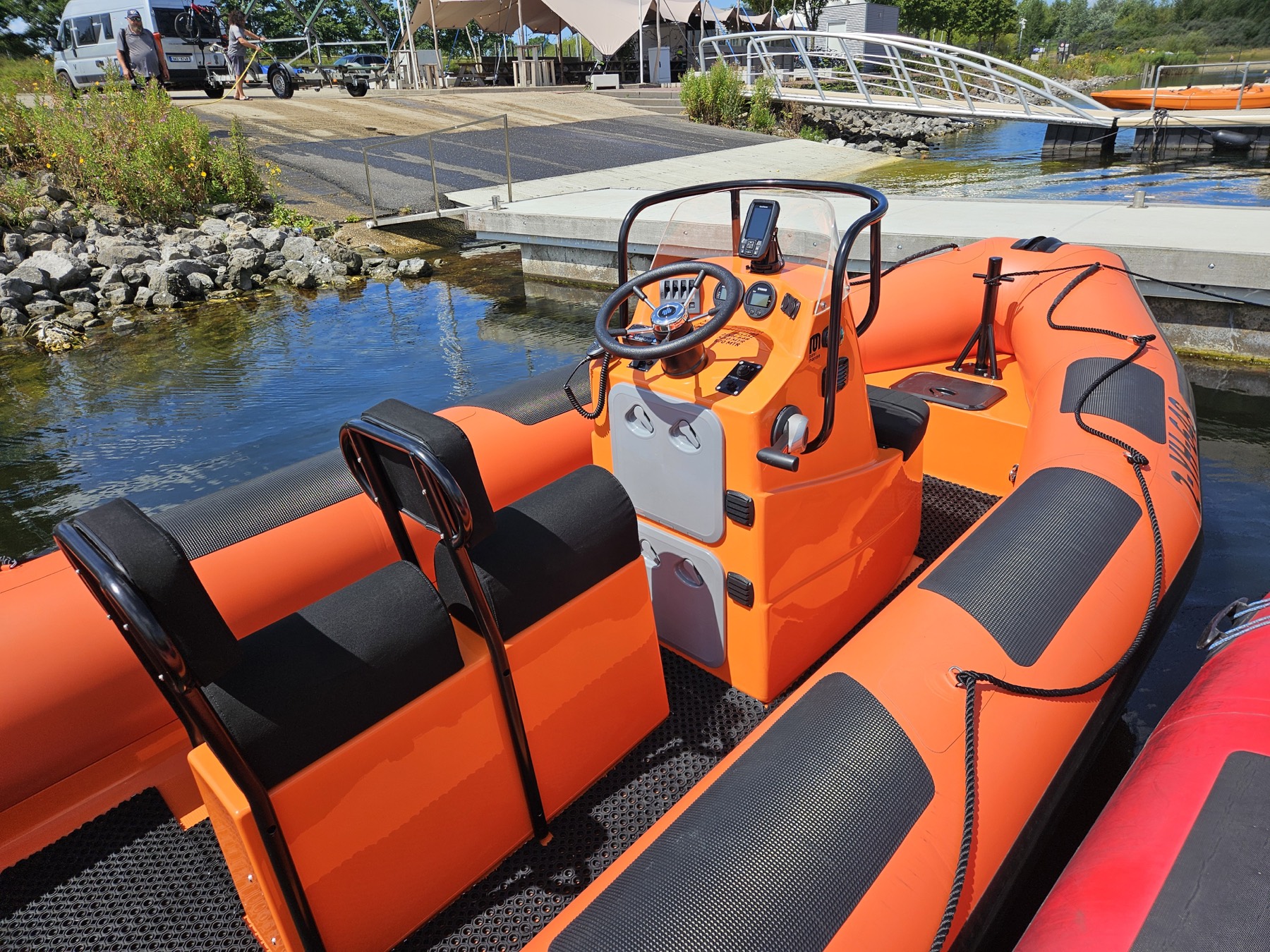

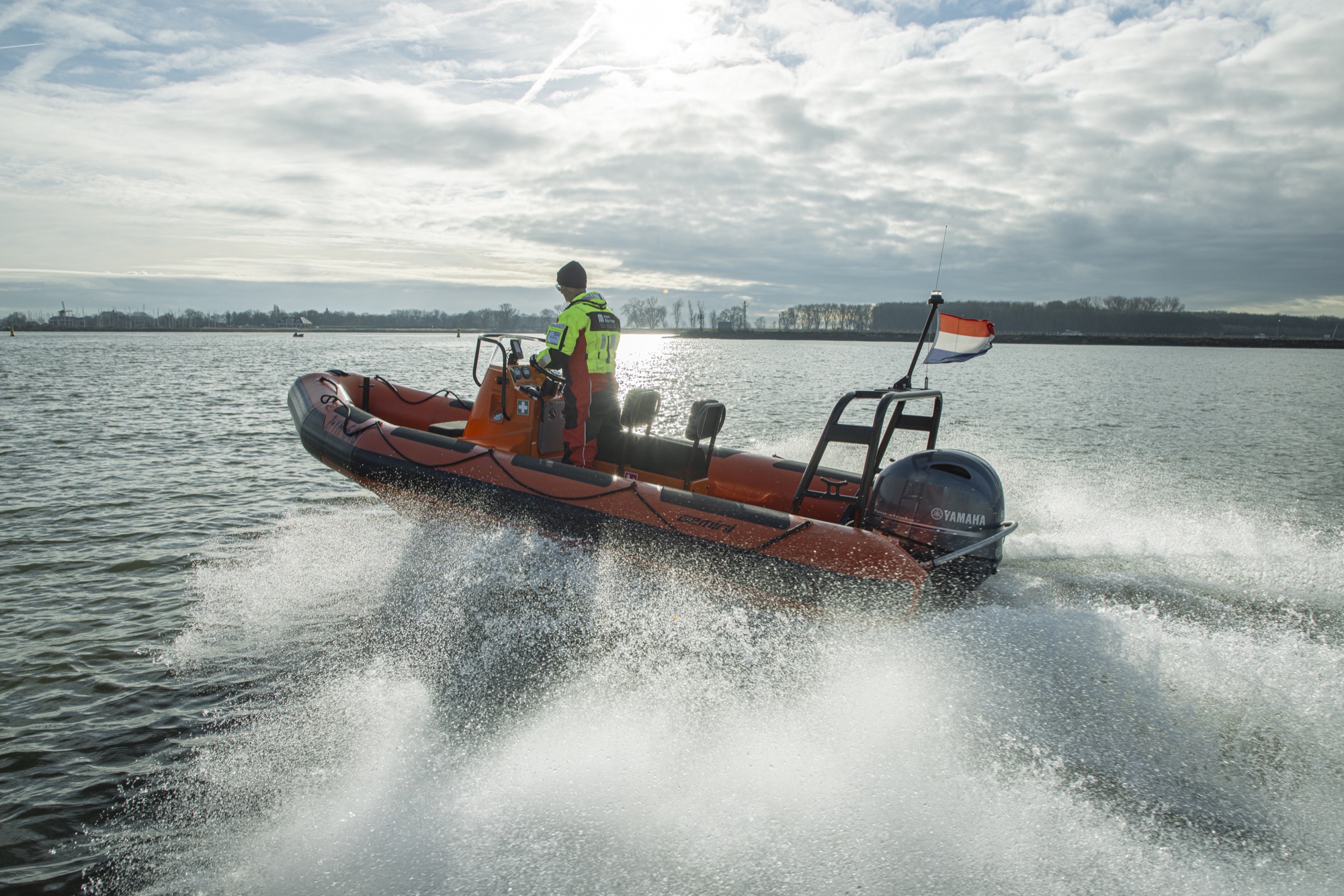

Gemini Marine WR550 Gallery
Interested in the Gemini WR550?
Tell us how you plan to use the WR550. We will advise on engines, deck layout and equipment and propose a configuration that fits your operation.
