Rhino Marine Titanium
Rhino Marine 600TT
Versatile HDPE workboat from the Titanium range, with a deep-V hull and an open deck around the console. Robustly built for personnel transfer, survey, diving and everyday professional operations.
5.88 m length
Max. 5 persons
Rec. max. 150 hp
Overview
About the Rhino Marine 600TT
The Rhino Marine 600TT combines robust HDPE construction with the relatively light and sleek design of the Titanium range. Its deep-V hull is developed as a versatile commercial working platform for personnel transfer, survey, dive support, fishing and aquaculture.
The open, welded HDPE deck and walk-around console keep the working area accessible. Seating, console position and a T-top can be configured for the operation. The 600TT is available with single or twin petrol outboards or a single diesel outboard. As an official Rhino Marine dealer, Novi Marine helps you select a suitable configuration.
Key features
✓
Deep-V HDPE hull
Robust plastic construction with the lighter, sleeker design of the Titanium range.
✓

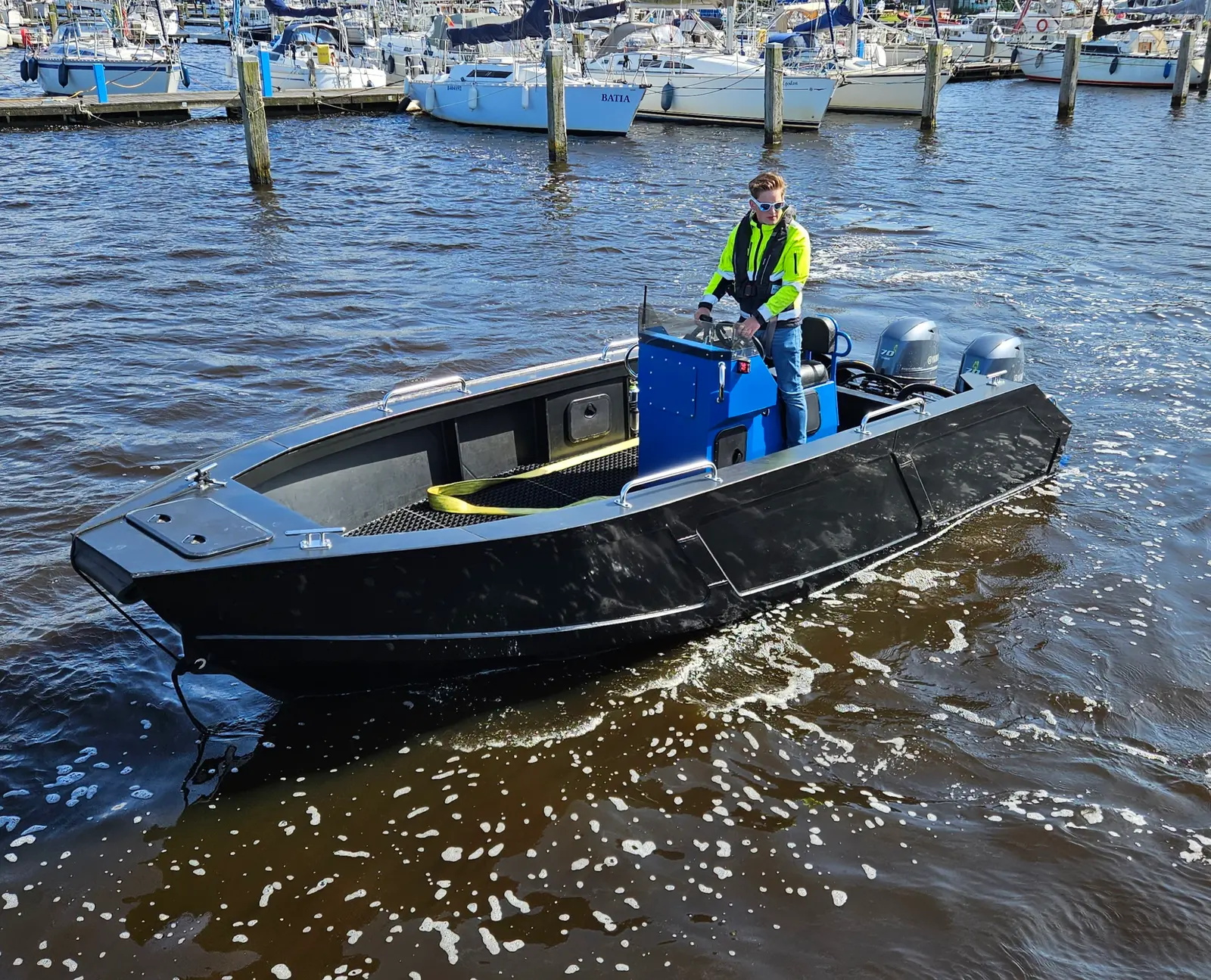

Accessible open working deck
Walk-around console with storage in the bow and along the gunwales.
✓
Versatile propulsion
Recommended petrol configurations are 1 × 150 hp or 2 × 75 hp. A single OXE 150 hp diesel outboard is also available.
✓
Configured for your work
Console, seating, T-top and navigation equipment can be tailored to the crew and application.
Technical data
Specifications
Dimensions
Length
5.88 m
Beam
2.20 m
Light draught
0.345 m
Height · console to keel
1.68 m
Weight & capacity
Lightship weight
880 kg
Max. persons
5 persons
Recommended max. payload
2,200 kg
Propulsion
Recommended max. power
150 hp
Engine configuration
Single / twin outboard
Fuel
Petrol / diesel
Recommended max. speed
40 kn
Recommended petrol configuration
1 × 150 hp / 2 × 75 hp
Built-in fuel tanks · optional
2 × 30 L
Construction & transport
Hull
Deep-V
Material
HDPE
ISO design category
C
Container transport
20 ft
Application
Workboat, tender, survey and diving
Standard equipment
Hull & deck
- Deep-V HDPE hull and welded deck
- Rubber bow D-fender
- Bow and gunwale storage compartments
- Forward and aft stainless steel cleats
- Lifting pad-eyes, webbed slings and shackles
- Towing pad-eye and grab rails
- Work-safe rubber deck matting
- Ducting, scupper flaps and bungs
Console & steering
- GRP console with jockey seat
- Acrylic visor and dash panel
- Stainless steel grab rails
- SeaStar hydraulic steering
- Steering wheel and helm pump
- Hydraulic tubing, fittings and fluid
- Steering tie bar
Electrical installation
- 12V system with fused switch panel
- Electrical wiring and connections
- Marine 12V output socket
- Port and starboard navigation lights
- Bilge pump with automatic switch
Options & configuration
Console & seating
- Double GRP console or aluminium console
- Configurable console position and seating
- T-top canopy
- Suspension seats
- Single-point quick-release lifting arrangement
- Engine protection frame
Fuel & navigation
- 2 × 30 litre built-in aluminium fuel tanks
- Fuel filter/water separator and fuel lines
- Raymarine Element 7-inch display with GPS and sonar
- Transducer and Ray53 VHF radio with GPS
- Handheld VHF and AIS receiver/transceiver
Propulsion
- Single Yamaha 150 hp petrol outboard
- Twin Yamaha F75 petrol outboards
- Mercury and Suzuki engines available
- Single OXE 150 hp diesel outboard
In pictures
Rhino Marine 600TT Gallery
Interested in the Rhino Marine 600TT?
Tell us how you plan to use the 600TT. We will advise on engines, deck layout and equipment and propose a configuration that fits your operation.
